ATHC15T Digital Astronomical Timer Switch

Products Info

>>   Category:Digital Programmable Time Switch

>>   Download Link

>>   E-mail:aultop@aultop.com.cn

>>   Tel:+86-577-62777339

Share to:

 Get a Quote

GET GUOTES

  X
Submit
  • Feature
  • Technical Parameters

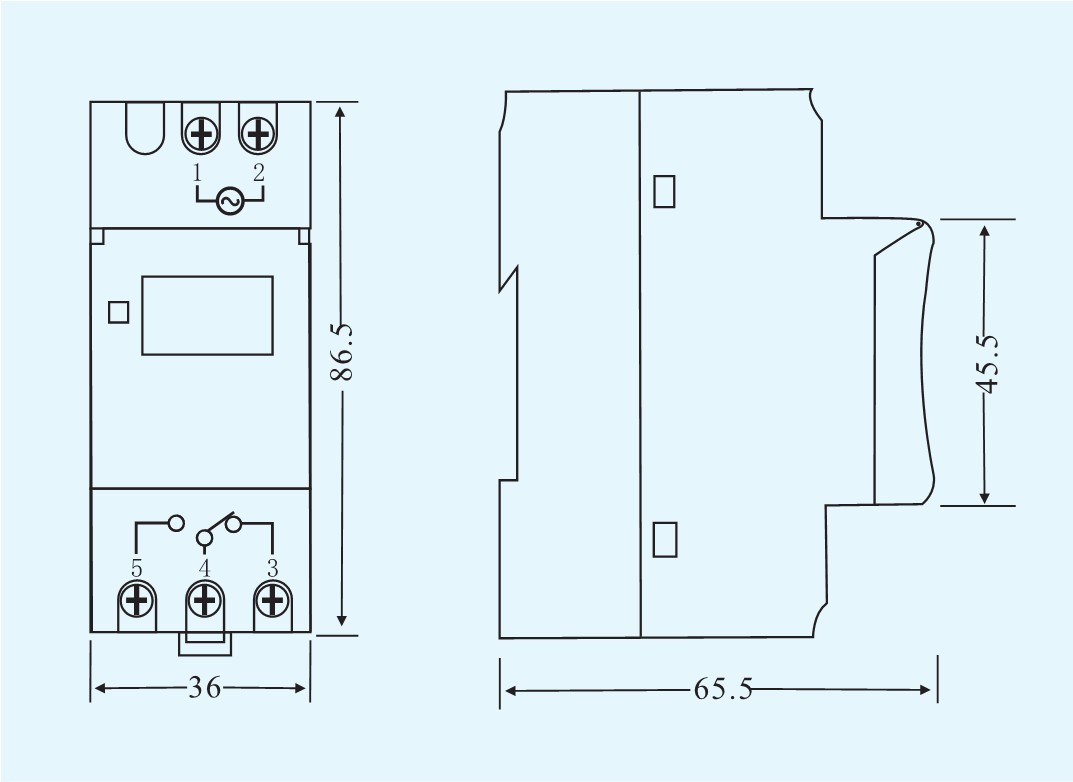

  • Dimensions

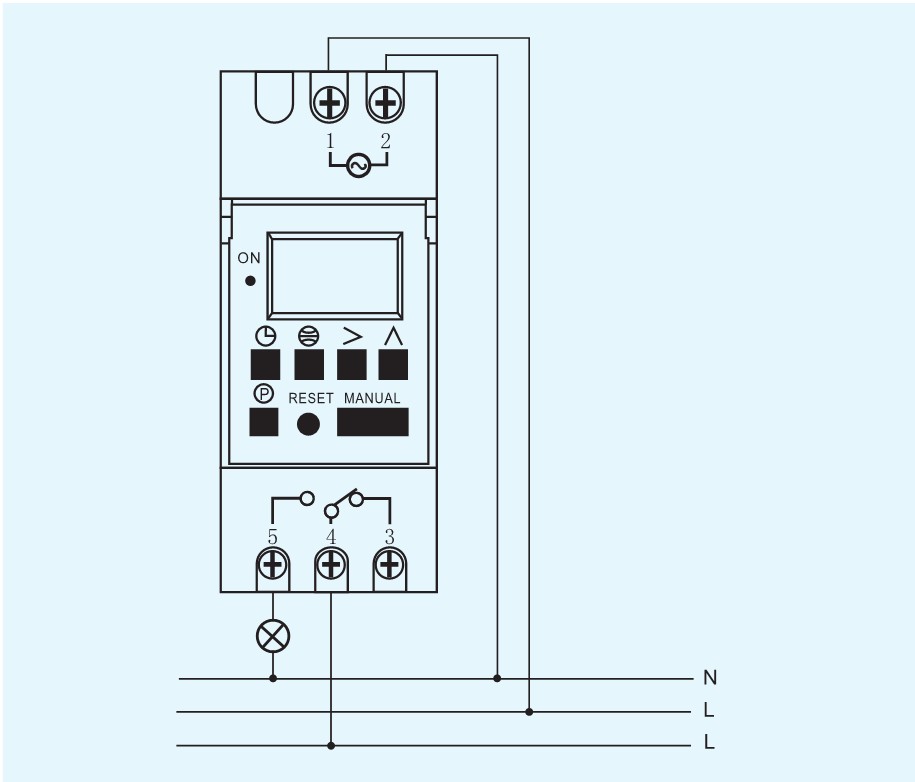

  • Wiring Diagram
  • Function
    DIN RAIL installation
    LCD display
    8 ON/OFF programs
    Lithium battery power reserve 3 year, when electric supply cut off
    Automatically adjust the set time along with seasonal variation to control ON/OFF for lighting on purpose of realizing that light is turned on when sun sets & turned off when sun rises.

  • Technical data

    Voltage rating

    AC220V 50/60Hz

    Voltage limit

    AC 180V~250V

    Hysteresis

    ≤2sec/day(25 )

    On/off operation

    8 On & 8 Off

    Power consumption

    5VA(max)

    Dispaly

    LCD

    Minimum interval

    1 Minute(pulse/cycle 1 s)

    Width

    2 Modules(36mm)

    Installation Type

    Din Rail

    Power reserve

    3 Years (Lithium battery)

    Switching contact

    1 Change over switch

    Switching Contact at 250VAC, cosφ=1

    16A

    Switching capacity at 250VAC, cosφ=0.6

    10A

    Incandescent/HALogen lamp load

    2300W

    Energy saving lamps

    22x7W, 18X11W, 16X15WM 16X20W, 14X23W

    Service life

    Mechancally

    107

    electrically

    105

    Ambient humidity

    35~85%rh

    Ambient temperature

    -10~+40

    Weight

    approx150g

    Certificate

    CE EMC, CE LVD, Rohs, CB, IEC test report
