DH48S-1Z/2Z/2H

Products Info

>>   Category:IC Time Relay

>>   Download Link

>>   E-mail:aultop@aultop.com.cn

>>   Tel:+86-577-62777339

Share to:

 Get a Quote

GET GUOTES

  X
Submit
  • Feature
  • Technical Parameters
  • Dimensions
  • Wiring Diagram

  • Classification

    Timer


    Model

    DH48S-1Z

    DH48S-2Z

    DH48S-2ZH

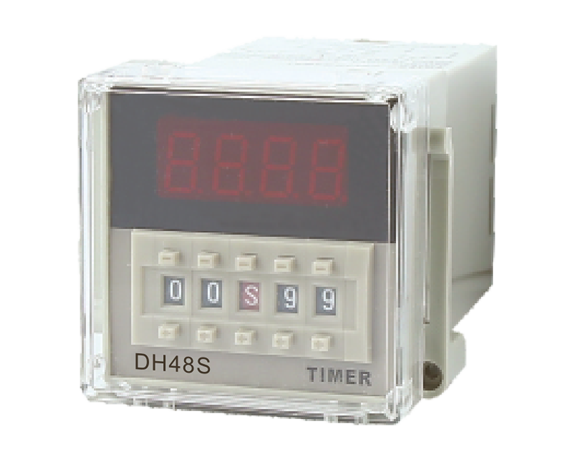

    Appearance







    Dimensions


    48H×48W×81.6D


    Mounting

    &Socket


    Surface(-n)


    PF083A,PS-08,P2CF-08


    Flush(-y)


    US-08,P3G-08


    FullTimingRange

    0.01S~99H99M


    RatedVoltage

    DC(V):12,24

    AC(V):12,24,110,220,240,380, 50/60Hz


    Display


    LED




    OutputContact


    Model


    DH48S-1Z


    DH48S-2Z


    DH48S-2ZH


    TimeLimit1c

    5A

    PAUSE

    &REST


    5A

    TimeLimit2c


    5A


    Instantaneous  1c



    5A



    Life

    Mechanical

    5×106times


    Electrical


    105times




    Accuracy


    RepeatError

    ±0.5%max


    SettingError

    ±0.5%max


    VoltageError

    ±0.5%max


    Temp.Error

    ±0.5%max


    ResetTime


    0.1sec max


    ConsumedPower

    2VA


    AmbientTemperature

    -10℃~+55℃


    AmbientHumidity


    48~85%RH


    Weight


    160g

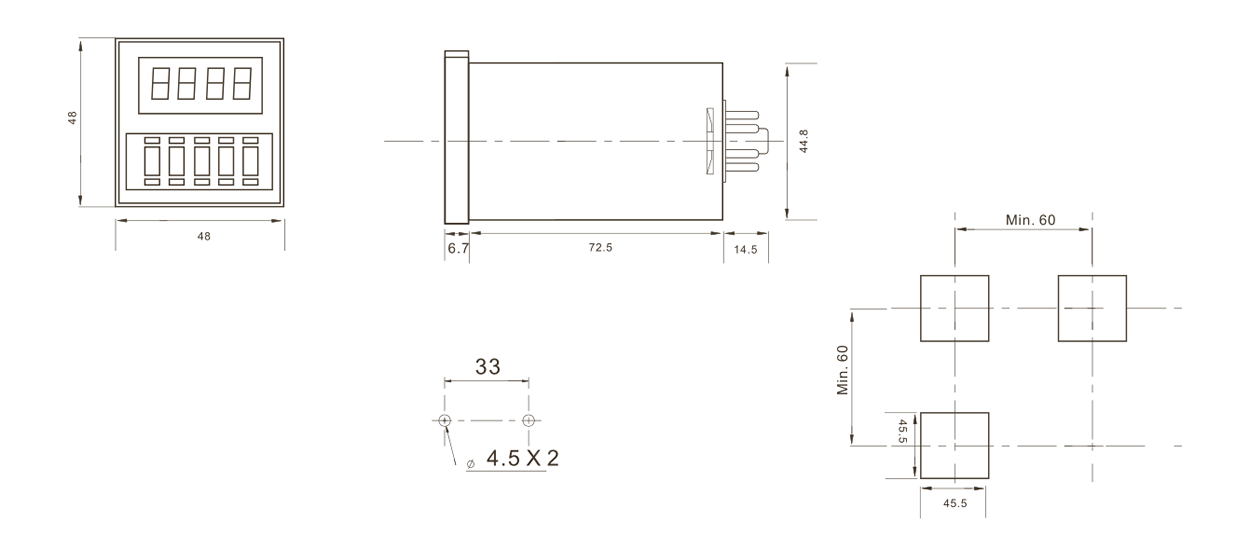

  • Dimensions: (mm)

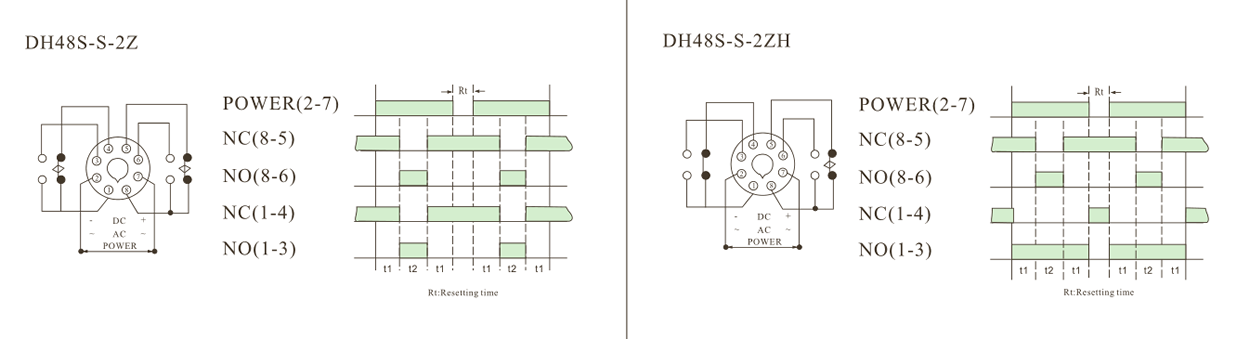

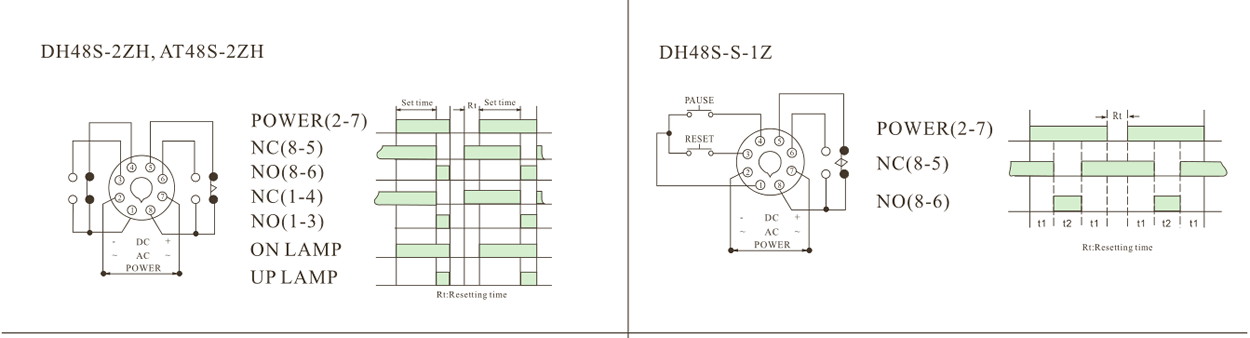

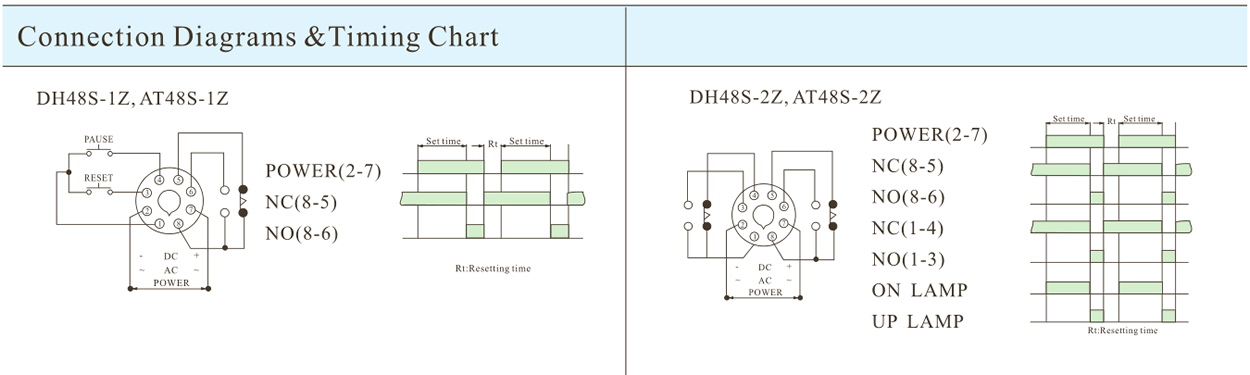

  • Connection Diagrams &Timing Chart
