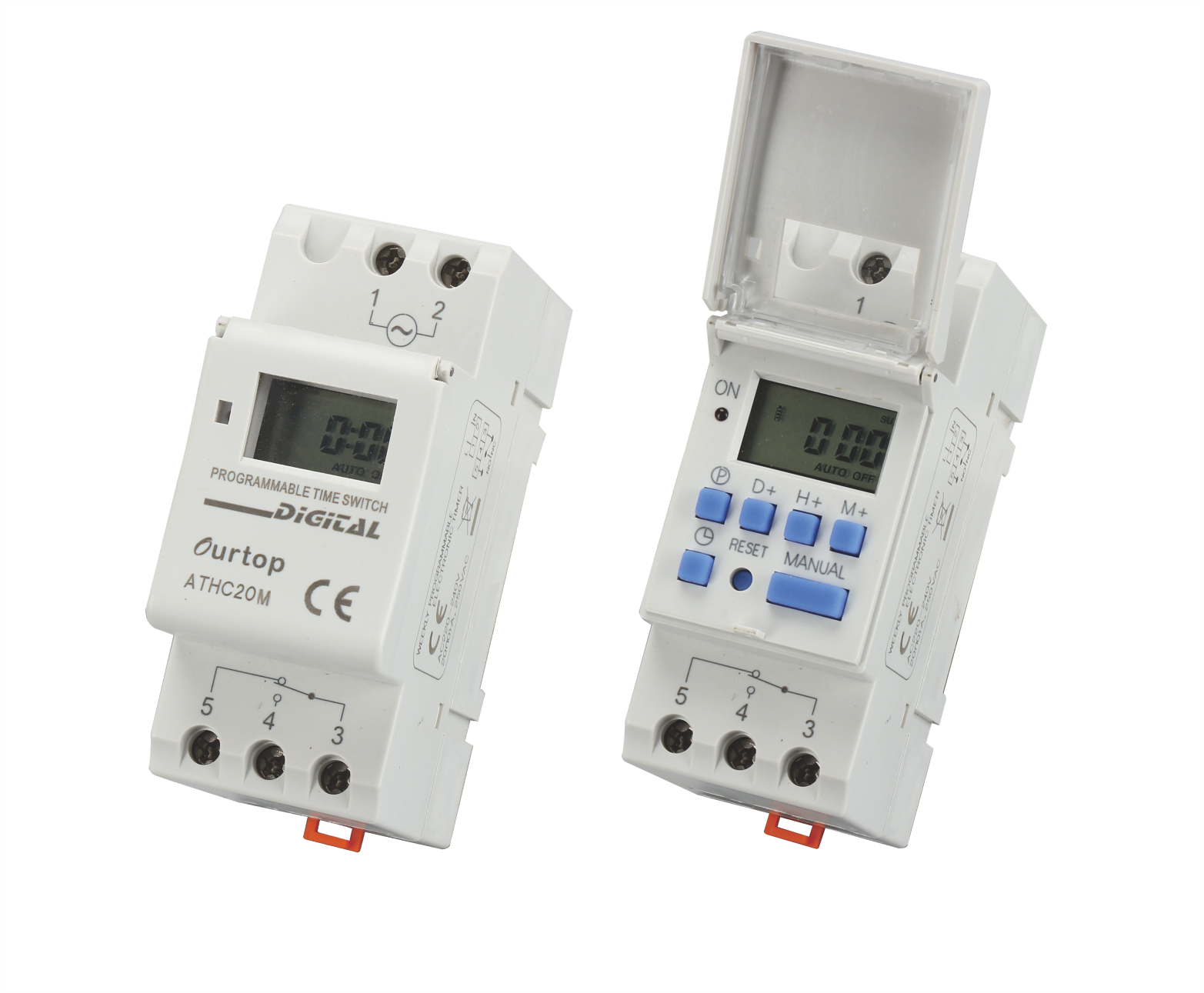

ATHC20M Digital Programmable Time Switch Multi-Voltage

Products Info

>>   Category:Digital Programmable Time Switch

>>   Download Link

>>   E-mail:aultop@aultop.com.cn

>>   Tel:+86-577-62777339

Share to:

 Get a Quote

GET GUOTES

  X
Submit
  • Feature
  • Technical Parameters

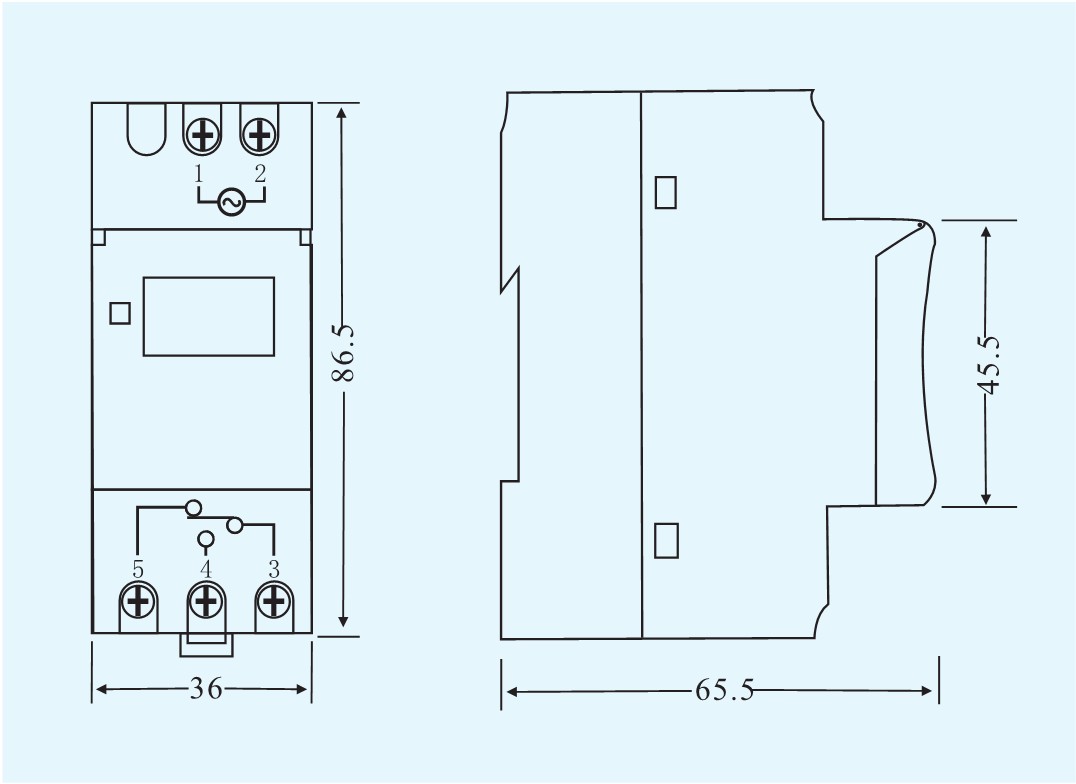

  • Dimensions

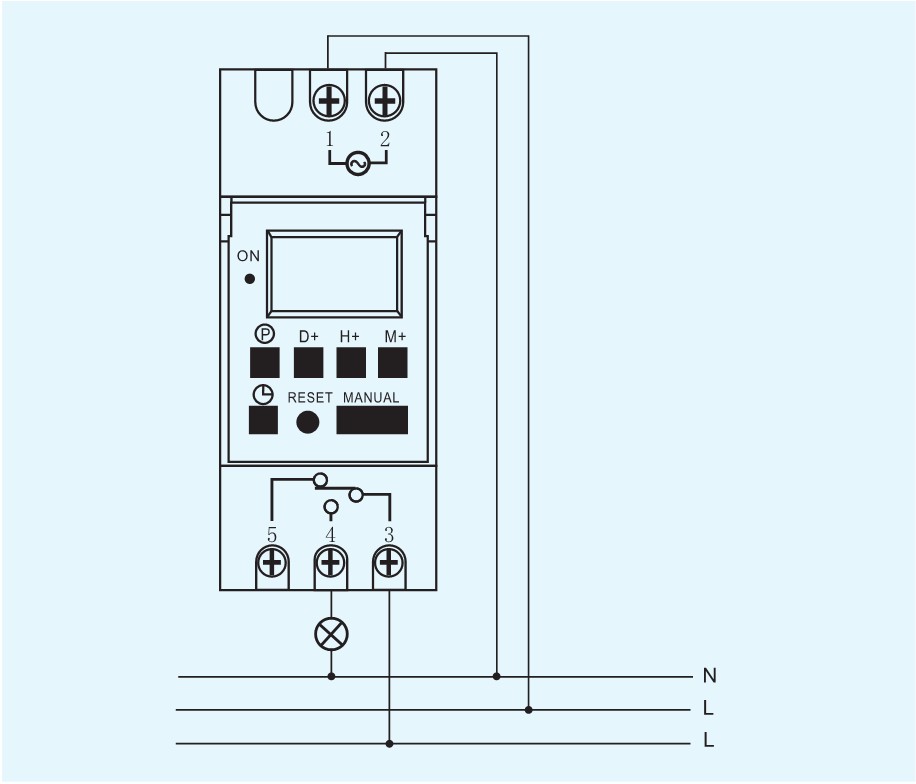

  • Wiring Diagram
  • DIN RAIL installation
    LCD display, Day/week program
    18 ON/OFF programs
    18 times pulse programs
    Lithium battery power reserve 3 year,
    when electric supply cut off
    Auto time erro correction ±30 sec, weekly

  • Voltage rating

    24-240VAC/DC 50/60Hz

    Voltage limit

    22V~260V AC/DC

    Hysteresis

    ≤2sec/day(25 )

    On/off operation

    18 On &18 Off18 times pulse

    Power consumption

    5VA(max)

    Dispaly

    LCD

    Minimum interval

    1 Minute(pulse/cycle 1 s)

    Pulse

    1 Sec-59min 59 sec

    Count down

    1 Sec-99 min 59 sec

    Width

    2 Modules(36mm)

    Installation Type

    Din Rail

    Power reserve

    3 Years (Lithium battery)

    Switching contact

    1 Change over switch

    Switching Contact at 250VAC, cosφ=1

    20A

    Switching capacity at 250VAC, cosφ=0.6

    12A

    Incandescent/HALogen lamp load

    2500W

    Energy saving lamps

    25x7W, 20X11W, 17X15WM 17X20W, 15X23W

    Service life

    Mechancally

    107

    electrically

    105

    Ambient humidity

    35~85%rh

    Ambient temperature

    -10~+40

    Weight

    approx150g

    Certificate

    CE EMC, CE LVD, Rohs, CB, IEC test report


    When the battery reserve,you can see the battery mark on the LCD dispaly.
    If use the power,the battery mark will disappers.
