ATHC622 2 Channel Digital Programmable Time Switch

Products Info

>>   Category:Digital Programmable Time Switch

>>   Download Link

>>   E-mail:aultop@aultop.com.cn

>>   Tel:+86-577-62777339

Share to:

 Get a Quote

GET GUOTES

  X
Submit
  • Feature
  • Technical Parameters

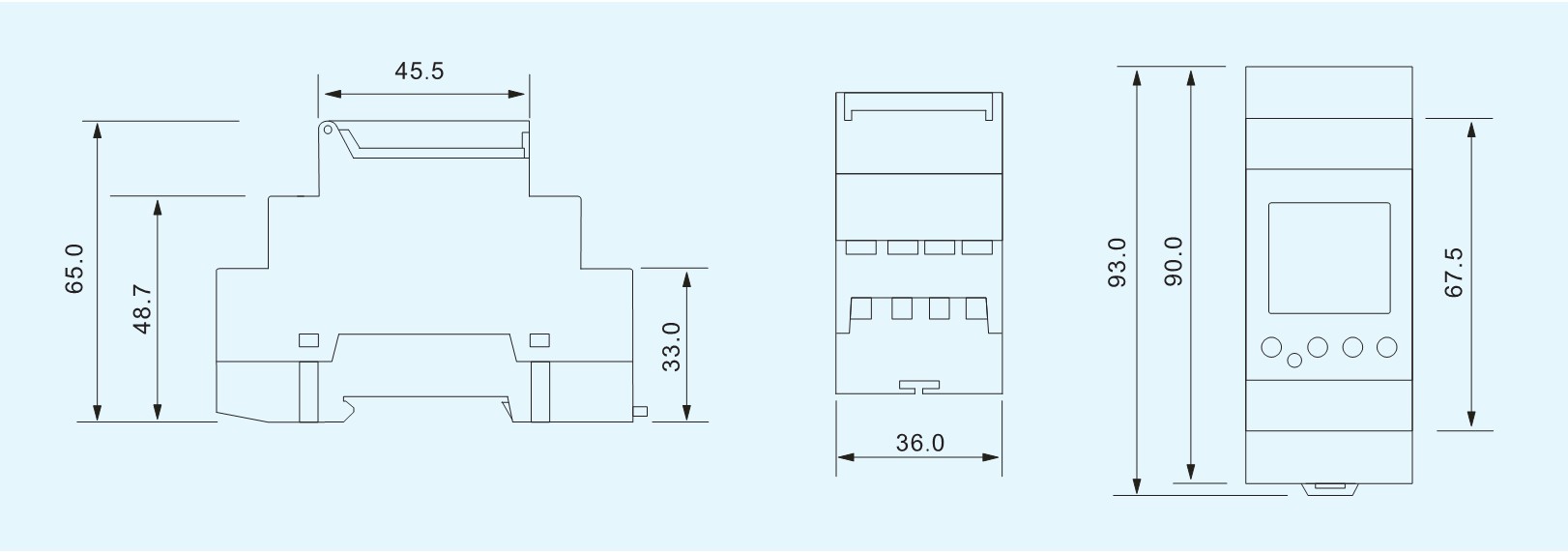

  • Dimensions

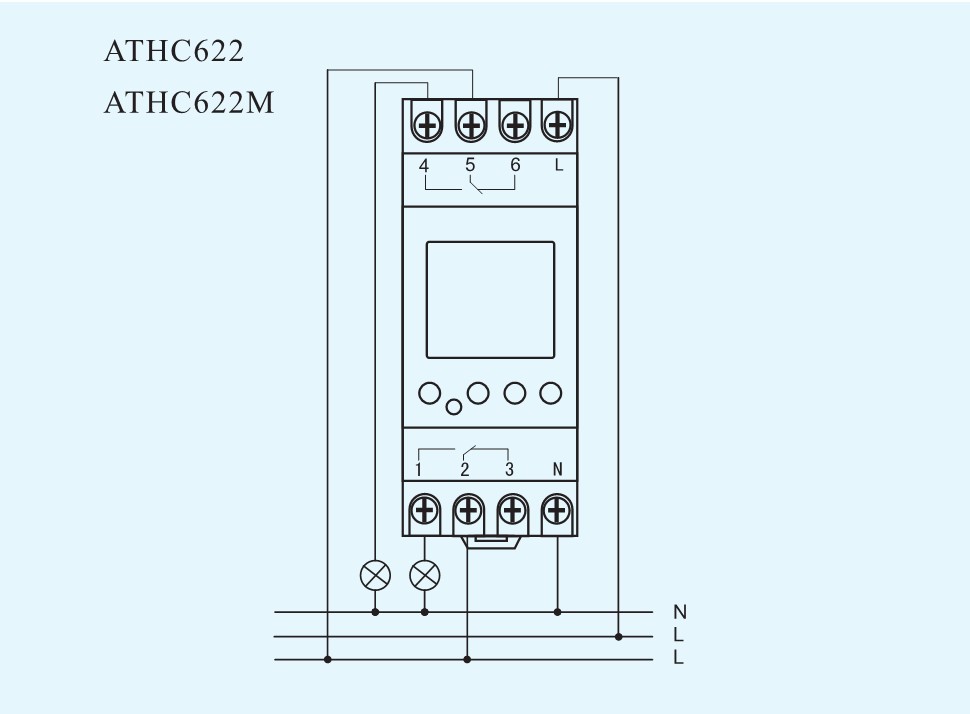

  • Wiring Diagram
  • Function
    Din Rail installation, 2 channel
    LCD display, Day/Week Program

    On-Off switching times

    Permanent ON/OFF switching

    Switching perselection

    44 Memory locations(22 ON/OFF programs)

    Pulse Program: 44 memory locations(22 times pulse programs)
    Lithium battery power reserve 3 year(When electric supply cut off)
    Auto time erro correction ±30sec, weekly
    Six languages: English, Portuguese, Italian, Spain,German, French

    Random switching,

    PIN coding,

    Holiday program,

    Cycle program

    Automatic summer/winter time changeover


  • Technical data


    Voltage rating

    AC 220V 50/60Hz

    Voltage limit

    AC200-240V

    Hysteresis

    ≤2sec/day(25 )

    On/off operation

    22 On & 22 Off22 times pulse

    Power consumption

    5VA(max)

    Dispaly

    LCD

    Minimum interval

    1 Minute(pulse/cycle 1 s)

    Pulse

    1 Sec-59min 59 sec

    Count down

    1 Sec-99 min 59 sec

    Width

    2 Modules(36mm)

    Installation Type

    Din Rail

    Power reserve

    3 Years (Lithium battery)

    Switching contact

    2 Change over switch

    Switching Contact at 250VAC, cosφ=1

    16A

    Switching capacity at 250VAC, cosφ=0.6

    10A

    Incandescent/HALogen lamp load

    2300W

    Energy saving lamps

    22x7W, 18X11W, 16X15WM 16X20W, 14X23W

    Service life

    Mechancally

    107

    electrically

    105

    Ambient humidity

    35~85%rh

    Ambient temperature

    -10~+40

    Weight

    approx150g

    Certificate

    CE EMC, CE LVD, Rohs
