ATMTD-M1 Delay OFF Without Supply Voltage Modular Time Relay

Applications:

Back-up source for Delay OFF in case of voltage failure(emergency light,

emergency respirator, or protection ofel. controlled doors- incase of fire)

Features

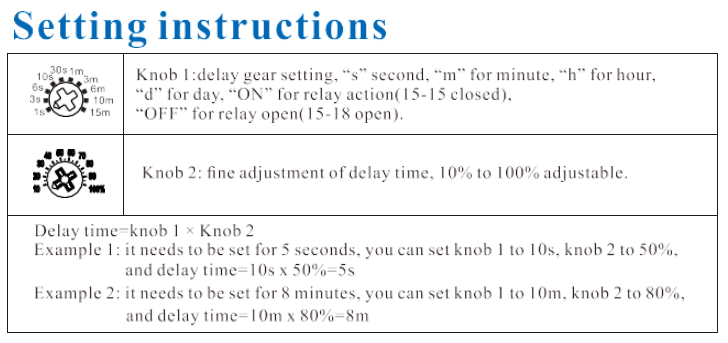

Time range (adjustable by potentiometer) 0.1s-15min.

Relay status is indicated by LED.

1 Module, Din Rain mounting.

Delay OFF without supply voltage.
