Digital Counter ATHC3J

Products Info

>>   Category:Digital Counter Hour Meter

>>   Download Link

>>   E-mail:aultop@aultop.com.cn

>>   Tel:+86-577-62777339

Share to:

 Get a Quote

GET GUOTES

  X
Submit
  • Feature
  • Technical Parameters

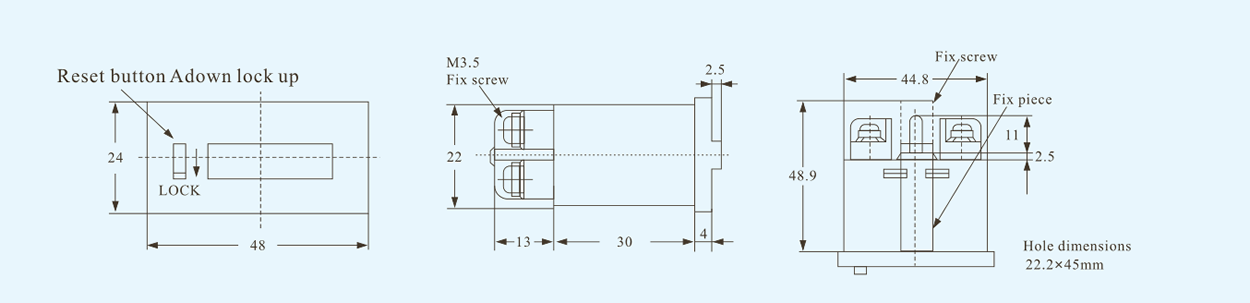

  • Dimensions

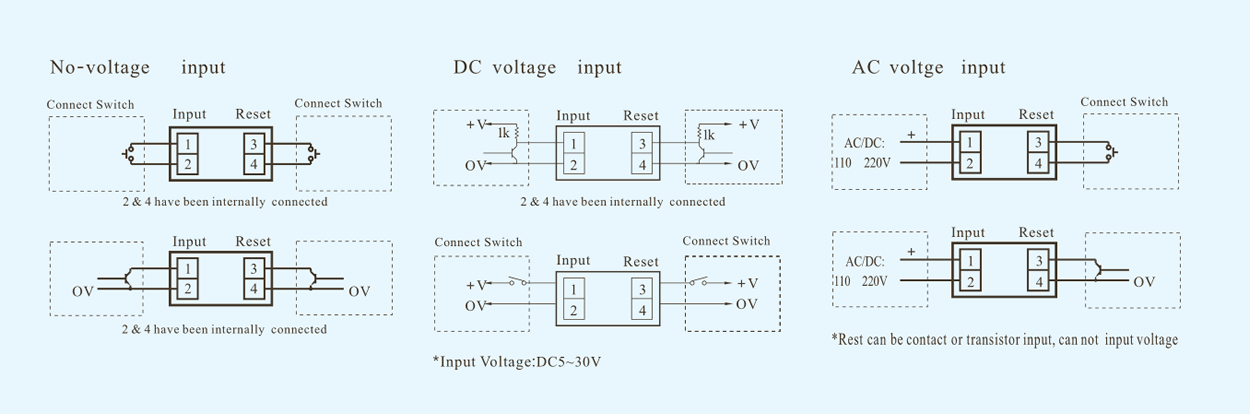

  • Wiring Diagram
  • Specifications

    Supply Voltage:
    Driven by built-in battery
    Display:
    6.7mmLCD
    Input Signal:
    Relay or switch contact
    Transistor input
    Weight:
    Appro 60g
    Reset System:
    External reset and manual reset
    Operating Temperature:
    - 10-40 ℃
    Nonvoltage Input
    Signal:
    Short-circuit impedance:10K max Ω
     Open impedance :500K Ω min
     Short- circuit residual voltage 0 .5v max
    Humidity:
    Reset Signal
    35%-85%RH
    ≥ . 0 2S
    Battery Life:
    ≥ 6 Years  Accuracy:
    T0 02 . %
