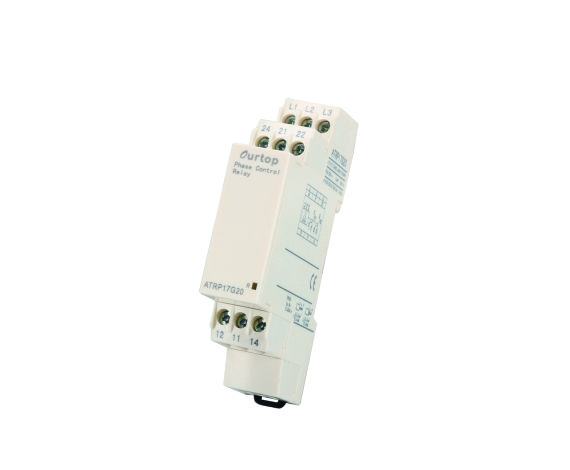

ATRP17G00 Phase Control Phase Failure Relay

Products Info

>>   Category:Phase Control Phase Failure Relay

>>   Download Link

>>   E-mail:aultop@aultop.com.cn

>>   Tel:+86-577-62777339

Share to:

 Get a Quote

GET GUOTES

  X
Submit
  • Feature
  • Technical Parameters
  • Dimensions
  • Wiring Diagram
  • Product Or Component Type

    Modular measurement and control relays

    Relay Type

    Control relay

    Product Specific Appli-cation

    For 3-phase supply

    Relay Name

    ATRP17G00

    ATRP17G20

    Relay Monitored Parameters

    Phase failure detection Phase sequence

    Switching Capacity In Va

    1250 VA

  • Environment

    Model

    ATRP17G00

    ATRP17G20

    Maximum Switching Voltage

    250 V DC/250 V AC

    Minimum Switching Current

    10 mA at 5 V DC

    [us] Rated Supply Voltage

    208...480 V AC 3 phases

    Supply Voltage Limits

    183...528 V AC

    Control Circuit Voltage Limits

    - 12 %, + 10 % Un

    Power Consumption In Va

    <= 22 VA 400 V AC 50 Hz

    Voltage Detection Threshold

    < 100 V for phase failure AC

    Control Circuit Frequency

    50...60 Hz +/- 10 %

    Output Contacts

    1 C/O

    2 C/O

    Nominal Output Current

    8 A

    Delay At Power Up

    <= 650 ms

    Voltage Range

    183...528 V

    Response Time

    <= 130 ms in the event of a fault

    Overvoltage Category

    III conforming to IEC 60664-1

    Insulation Resistance

    > 500 MOhm at 500 V DC conforming to IEC 60664-1

    > 500 MOhm at 500 V DC conforming to IEC 60255-5

    [ui] Rated Insulation Voltage

    400 V conforming to IEC 60664-1

    Supply Frequency

    50/60 Hz +/- 10 %

    Operating Position

    Any position without

    Connections - Terminals

    Screw terminals 2 x 0.2...2 x 1.5 mm² - AWG 24...AWG 16, flexible cable with ca-ble end Screw terminals 1 x 0.2...1 x 2.5 mm² - AWG 24...AWG 12, flexible cable with ca-ble end Screw terminals 2 x 0.5...2 x 2.5 mm² - AWG 20...AWG 14, solid cable withoutcable end Screw terminals 1 x 0.5...1 x 4 mm² - AWG 20...AWG 11, solid cable without ca-ble end

    Tightening Torque

    0.6...1 N.m conforming to IEC 60947-1

    Housing Material

    Self-extinguishing plastic

    Status Led

    1 LED yellow for relay

    Mounting Support

    35 mm symmetrical DIN rail conforming to EN/IEC 60715

    Electrical Durability

    100000 cycles

    Mechanical Durability

    30000000 cycles

    Operating Rate

    360 operations/hour under full load

    Width

    17.5 mm

    Product Weight

    0.13 kg



    Electromagnetic Compatibility

    Immunity for industrial environments conforming to EN/IEC 61000-6-2 Emission standard for residential, commercial and light-industrial environments conforming to EN/IEC 61000-6-3

    Emission standard for industrial environments conforming to EN/IEC 61000-6-4

    Standards

    EN/IEC 60255-1

    Ambient Air Temperature For Storage

    -40...70 °C

    Ambient Air Temperature For Operation

    -20...50 °C

    Relative Humidity

    95 % at 55 °C conforming to IEC 60068-2-30

    Vibration Resistance

    1 gn (f = 57.6...150 Hz) conforming to IEC 60068-2-6/IEC 60255-21-1

    0.35 mm (f = 5...57.6 Hz) conforming to IEC 60068-2-6/IEC 60255-21-1

    Shock Resistance

    15 gn for 11 ms conforming to IEC 60255-21-1

    Ip Degree Of Protection

    Ip30 (casing) conforming to IEC 60529 IP20 (terminals) conforming to IEC 60529

    Pollution Degree

    3 conforming to IEC 60664-1

    Dielectric Test Voltage

    2 kV 1 min AC 50 Hz

    Non-dissipating Shock Wave

    4 kV

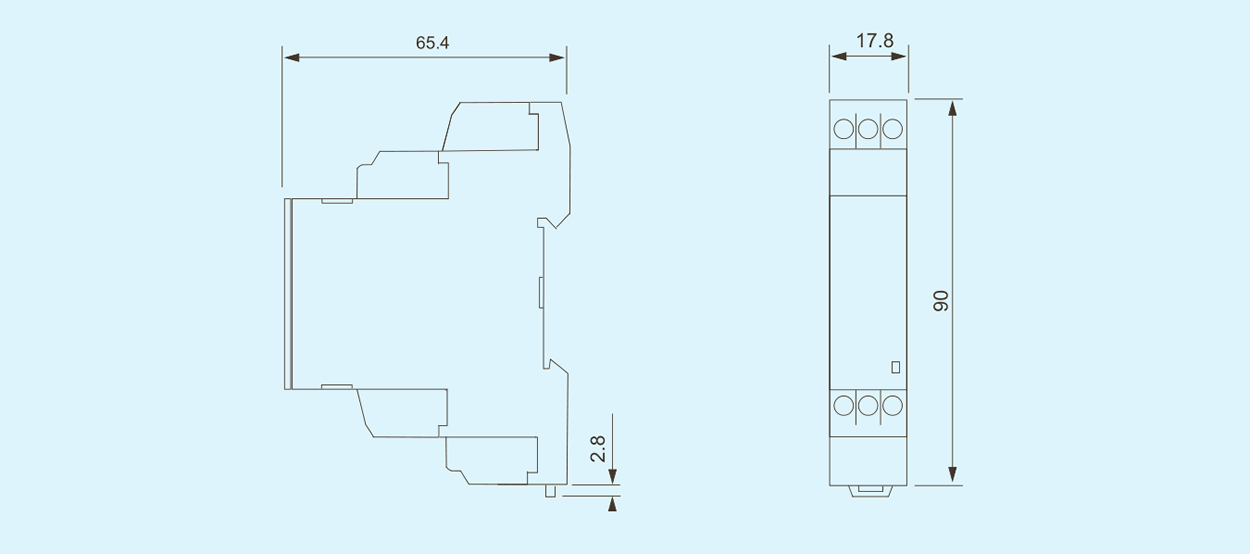

  • 3-Phase Supply Control Relays Dimensions and Mounting

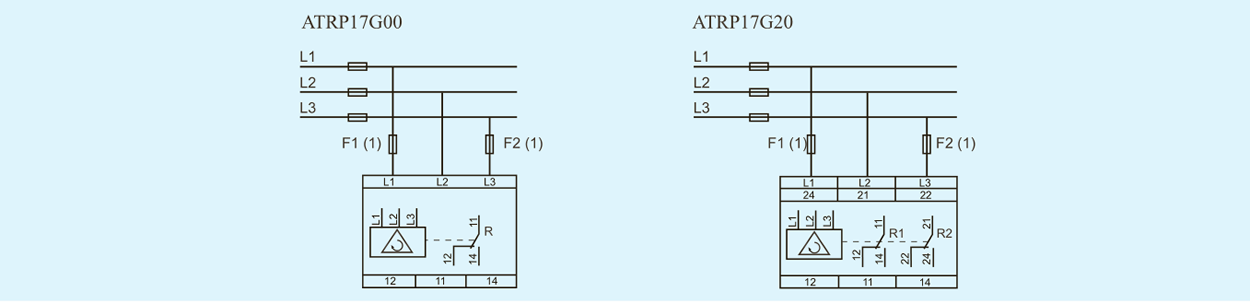

  • Connection Diagrams
