ALN/AL2N Level Control Relay

Products Info

>>   Category:Watter Level Control Relay

>>   Download Link

>>   E-mail:aultop@aultop.com.cn

>>   Tel:+86-577-62777339

Share to:

 Get a Quote

GET GUOTES

  X
Submit
  • Feature
  • Technical Parameters
  • Dimensions
  • Wiring Diagram
  • Characteristic:
    Suitable for any electrolytic fluid(NO VOLATILE FLUID)
    AC operating voltage
    Low electrodes AC voltage to prevent electrolysis for longer life expectancy
    Drainage function only avilable on ALN
    Water supply function avilable
    Sensitivity adjustable,5K ~100K
    2C contacts on ALN-11 one of them can be connected to an indicator

  • Specification:

    Operating Voltage

    AC(V):24,110,120,220,230,240

    Allowable Operating Voltage Range

    85~110% of rated operating voltage

    Rated Frequency

    50/60Hz

    Contact Rating

    250V AC 5A(resistive load)

    Electrode Voltage

    20V AC

    Adjustable Sensitivity

    5K~100K

    Response Time(high Level)

    Approx.300 ms

    Response Time(low Level)

    Approx.500 ms

    Power Consumption

    Approx.3VA

    Life

    Mechanical:5,000,000 times    Electrical:100,000 times

    Ambient Temperature

    -10~+50

    Ambient Humidity

    MAX 85%RH

    Weight

    Approx.160g

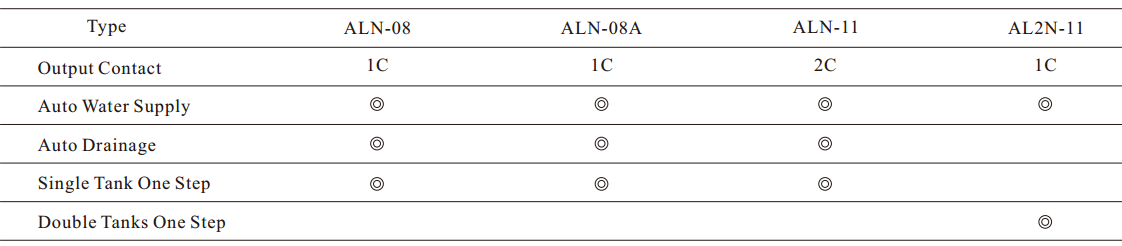

    Type Selection:

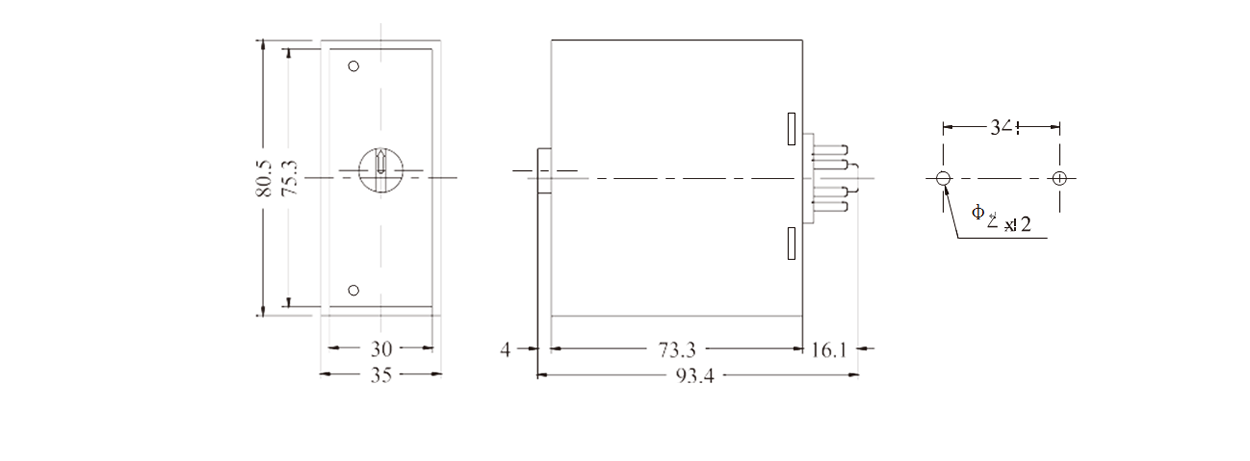

  • Dimensions(mm)

  • ALN-08 8Pins:PF083A(-E),PF085A,ASD-08E,ASE-08E
    ALN-11 11Pins:PF113A(-E), ASD-00E, ASE-11E

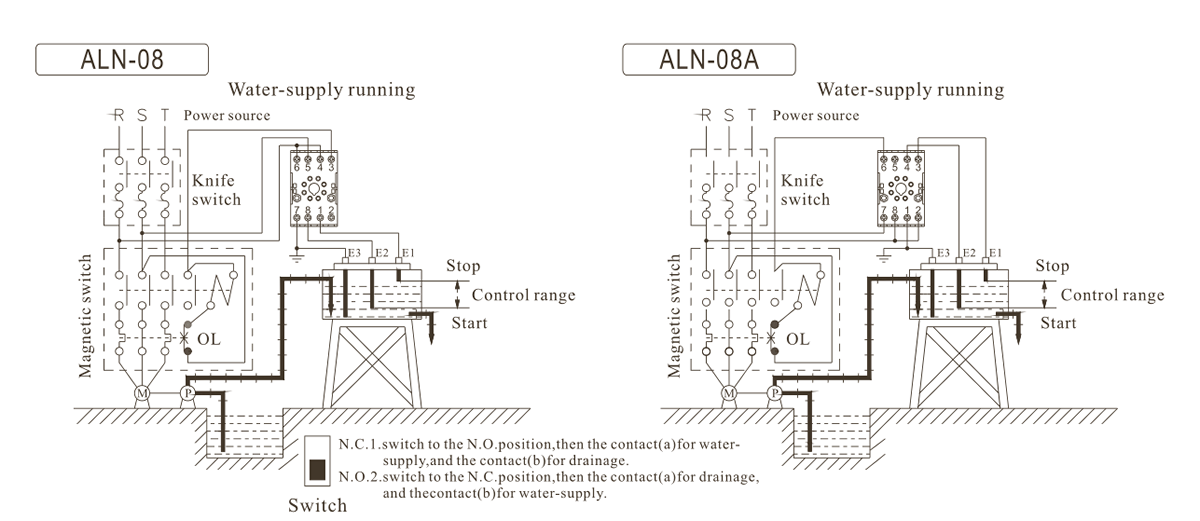

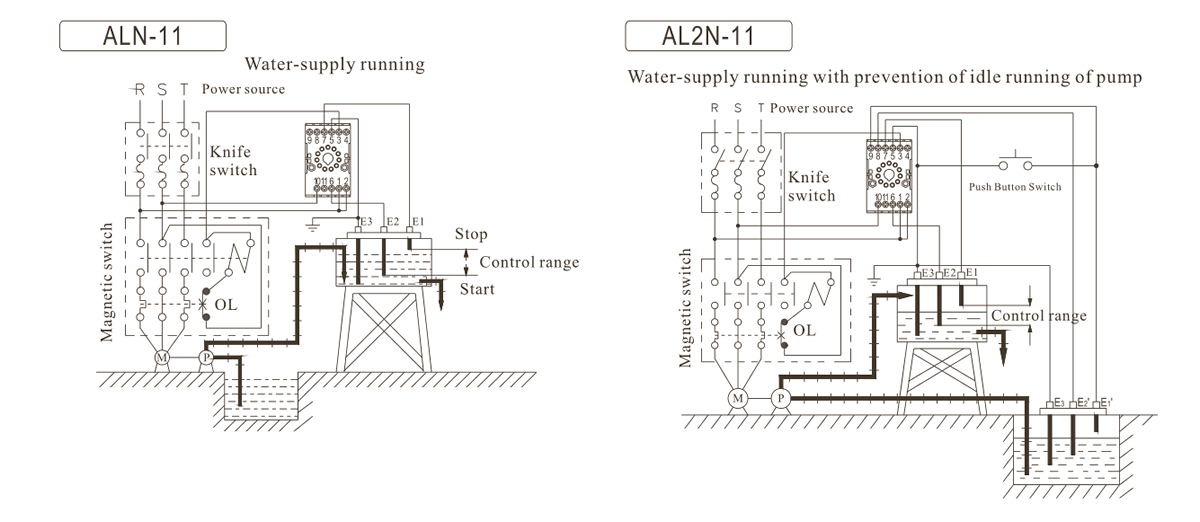

    Connection
