Digital Combination Meter

Products Info

>>   Category:Digital Electric Power Meter

>>   Download Link

>>   E-mail:[email protected]

>>   Tel:+86-577-62777339

Share to:

 Get a Quote

GET GUOTES

  X
Submit
  • Feature
  • Technical Parameters
  • Dimensions

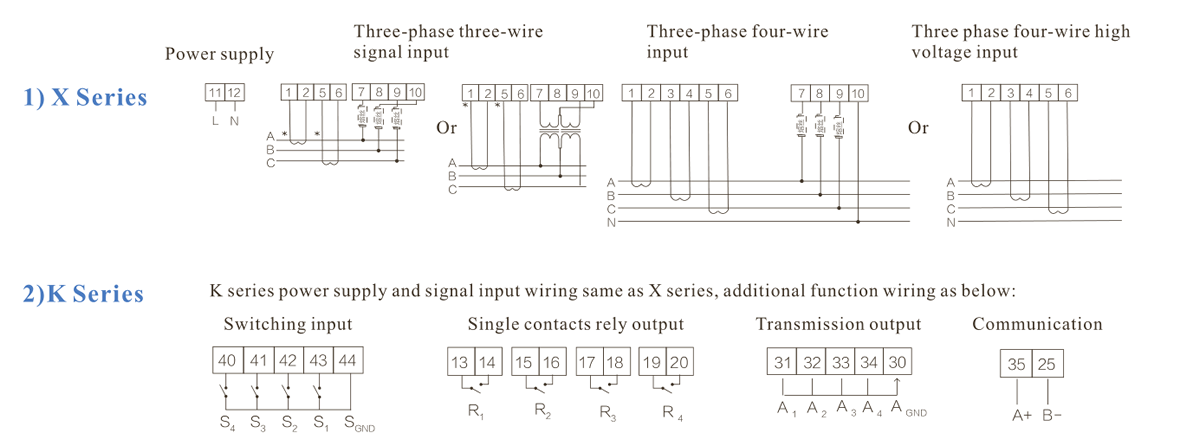

  • Wiring Diagram
  • Digital Combination Meter have X, K two series of digital instrumentation.
    X series Digital combination meter that is through the direct exchange sampling, and uses the effective value algorithm directly to measure the power factor, and directs the demonstration digital power meter. K series Digital combination meter based on X series to increase 1to 4way Sn(n=1~4) input to achieve remote communication/1to 4way Rn(n=1~4) relay alarm output and 1 to 4An(n=1~4) way transmission output to 4-20mA with RS485 communication,Adoption of Modbus-RTU agreement to achieve telemetry.
    From the measurement of power network can devided into single phase (ac/dc) current meter and three phase current meter .Single phase voltage meter with single row (LED )or LCD dislay way ,three phase voltage meter with three rows digital (LED ) or LCD dislay.
    Please reference to the technical Indexon the meter.
    Product Select Table

    Product Model

    Phase

    □  Input Way

    ■ Outline code

    (Code please refer to outline dimensions drawing)

    Communication

    Value Switching

    Output Relay

    Output Analog

    Dispaly

    4

    AC

    5

    DC

    1

    2

    3

    4

    5

    9

    A

    D

    LED

    LCD

    ADM4UI- ■ X1

    P/Q/H/F

    S

    √

    √

    √

    —

    √

    √

    √

    —

    —

    —

    —

    —

    √

    —

    —

    ADM4UI- ■ K1(SnRAC)

    P/Q/H/F

    S

    —

    √

    √

    —

    —

    √

    √

    √

    √

    1~4

    √

    √

    √

    —

    —

    ADM4UI- ■ K1(SnRAC)

    P/Q/H/F

    S

    —

    √

    √

    —

    —

    √

    √

    √

    √

    1~4

    √

    √

    —

    √

    √

    ADM4UI- ■ X4

    P/Q/H/F

    T

    —

    √

    √

    —

    —

    √

    √

    —

    —

    —

    —

    —

    √

    —

    —

    ADM4UI- ■ K4SnRnAnC)

    P/Q/H/F

    T

    —

    √

    √

    —

    —

    √

    注①

    √

    √

    1~4

    1~4

    1~4

    √

    —

    —

    ADM4UI- ■ KY3SnRnAnC)

    P/Q/H/F

    T

    —

    √

    √

    —

    —

    √

    注①

    √

    √

    1~4

    1~4

    1~4

    —

    √

    √

    Remark: Description: N① switching value input (S) relay output (R) can not be used at the same time; Note② indicates that the instrument of this specification has only communication (C) function. Supplementary Note: 1, When selected, the product model a column according to user requirements fill in the value of n. 2,the function sequence by SRAC, respectively (relay output)said: switch input, switch (relay) output, the analog transmission output,communication. Namely: S-Switch,
    R: Relay, A-Analog, C-Communication.
    Example: ADM4UIF-9KY3SWREA1C: 96-type three-phase AC UIF combination form, rated voltage 450V, LCD display,with 2 digital inputs, 3 relay outputs, one way analog transmission output, with Modbus 485 communication Interface.

  • Technical Index

    Indicator

    Class of Precision

    Current ,Voltage ,active energy :0.5 reactive energy 1, frequency :±0.1

    Display

    LED OR LCD

    Input

    Nominal Input

    VoltageAC100V、400Vetc.;Current AC1A、5A etc.

    OverLoad

    Voltge/Current continued:1.2time,Instantaneous:2 time

    Frequency

    40 ~ 65Hz

    Power

    Working Range

    AC220V;AC/DC85 ~ 270V

    Power  consumption

    < 5A

    Transmitting Output

    DC4-20mAwhen current output load < 510Ω,DCO-5Vwhen voltage output load > 20KΩ

    Communication Port

    RS-485port,Modbus-RTUprotocol ,Baud rate 9600select 2400,4800)bps

    Relay Output

    relay output,relay contact capacity:AC5A/250V impedance,DC5A/30 impedance

    Switching Value input

    Switching input,stem node piont ,R < 500Ω on;R > 100KΩ off

    Isolation resistance

    power and input > AC2KV,power and output > AC2kV,Output and Input > AC1KV

    Insulation resistance

    ≥ 100MΩ

    Average no fault working time

    ≥ 5000h

    Working Condition

    Ambient Temperature :-10-55℃,Relative Humidity ≤ 93%,no aggressive gas

    Save Environment

    -20-75℃,relative humidity ≤ 93%

    Altitude

    ≤ 2500m

  • Outline Dimension Table

    Outline Code

    Frame Dimension

    (mm 2)

    Loading Screen With Dimension   (mm 2)

    Cutout Dimension

    (mm 2)

    Installation depth          (mm )

    (not including frame thickness)

    1

    160×80

    151×75

    152×76

    76

    2

    120×120

    110×110

    111×111

    108×108

    55.5Series /2 M /2K4)

    93.5(Other)

    3

    80×80

    75×75

    76×76

    75

    4

    120×60

    115×55

    116×56

    93

    5

    96×48

    90×43

    91×44

    117

    9

    96×96

    90×90

    91×91

    88×88

    75

    A

    72×72

    66×66

    67×67

    75

    D

    48×48

    44.5×44.5

    45×45

    89
