Digital Power Factor Meter

Products Info

>>   Category:Digital Electric Power Meter

>>   Download Link

>>   E-mail:aultop@aultop.com.cn

>>   Tel:+86-577-62777339

Share to:

 Get a Quote

GET GUOTES

  X
Submit
  • Feature
  • Technical Parameters
  • Dimensions

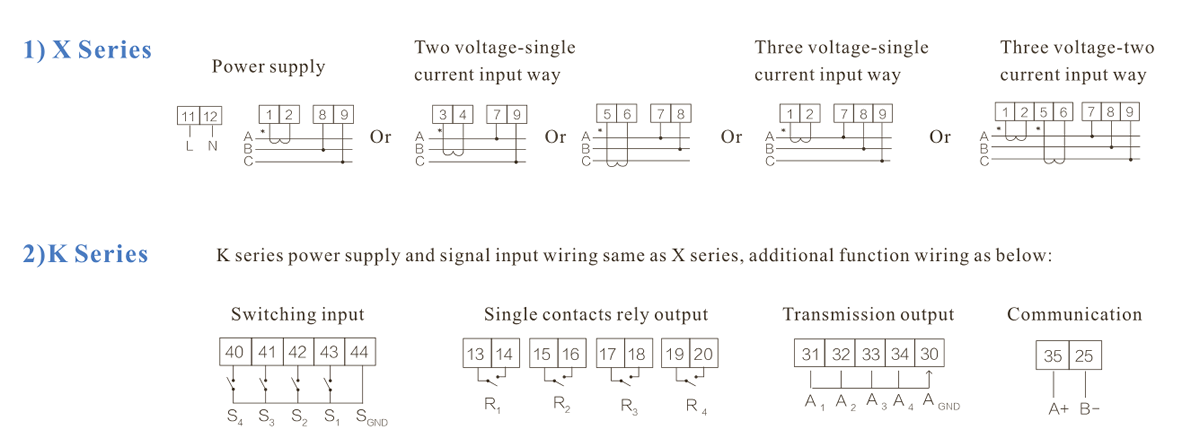

  • Wiring Diagram

  • Digital power factor meter suitable for Power system/Automated system, It can measure the digital active power / reactive power electrical parameters in the power system, In accordance with its additional functional division, we have X, K two series of digital instrumentation.
    X series Digital power factor meter that is through the direct exchange sampling, and uses the effective value algorithm directly to measure the power factor, and directs the demonstration digital power meter.
    K series Digital power factor meter based on X series to increase 1to 4way Sn(n=1~4) input to achieve remote communication/1to 3way Rn(n=1~3) relay alarm output and 1 to 3An(n=1~3)way transmission output to 4-20mA with RS485 communication,Adoption of Modbus-RTU agreement to achieve telemetry.
    Specific technical indicators refer to general technical indicators of the instrument
    Product Select Table

    Product Model

    Phase

    □  Input Way

    ■ Outline code

    (Code please refer to outline dimensions drawing)

    Communication

    Value Switching

    Output Relay

    Output Analog

    Dispaly

    4

    AC

    5

    DC

    1

    2

    3

    4

    5

    9

    A

    D

    LED

    LCD

    ADM4H- ■ X4

    S

    √

    —

    —

    √

    √

    —

    —

    √

    √

    —

    —

    —

    —

    —

    √

    —

    ADM4H- ■ K4（SnRnAnC）

    S

    √

    —

    —

    √

    √

    —

    —

    √

    注

    ①

    —

    √

    1～4

    1～3

    1～3

    √

    —

    ADM4H- ■ KY3（SnRnAnC）

    S

    √

    —

    —

    √

    √

    —

    —

    √

    注

    ①

    —

    √

    1～4

    1～3

    1～3

    —

    √


    Remark: The input and the relay input can not be selected at the same time switching value
    Supplementary explanation:
    1. In the selection, the product model column according to user needs to fill out
    2. The order of functions is sorted by SRAC, Respectively are: S-switch, R-relay, A-analog, C-communication.
    Example:
    96type Three phase active power meter,Rated voltage:450v,Rated current:5A,LCD display, with 2way switch input, ADM4H-9KY3SWREA1C：
    3way relay output,1way analog output, with Modbus 485.

  • Technical Index

    Indicator

    Class of Precision

    Current ,Voltage ,active energy :0.5 reactive energy 1, frequency :±0.1

    Display

    LED OR LCD

    Input

    Nominal Input

    VoltageAC100V、400Vetc.；Current AC1A、5A etc.

    OverLoad

    Voltge/Current continued：1.2time，Instantaneous：2 time

    Frequency

    40 ～ 65Hz

    Power

    Working Range

    AC220V；AC/DC85 ～ 270V

    Power  consumption

    ＜ 5A

    Transmitting Output

    DC4-20mAwhen current output load ＜ 510Ω，DCO-5Vwhen voltage output load ＞ 20KΩ

    Communication Port

    RS-485port，Modbus-RTUprotocol ，Baud rate 9600select 2400，4800）bps

    Relay Output

    relay output，relay contact capacity：AC5A/250V impedance，DC5A/30 impedance

    Switching Value input

    Switching input,stem node piont ，R ＜ 500Ω on；R ＞ 100KΩ off

    Isolation resistance

    power and input ＞ AC2KV，power and output ＞ AC2kV，Output and Input ＞ AC1KV

    Insulation resistance

    ≥ 100MΩ

    Average no fault working time

    ≥ 5000h

    Working Condition

    Ambient Temperature ：-10-55℃，Relative Humidity ≤ 93%，no aggressive gas

    Save Environment

    -20-75℃，relative humidity ≤ 93%

    Altitude

    ≤ 2500m

  • Outline Dimension Table

    Outline Code

    Frame Dimension

    (mm 2)

    Loading Screen With Dimension   (mm 2)

    Cutout Dimension

    (mm 2)

    Installation depth          (mm )

    (not including frame thickness)

    1

    160×80

    151×75

    152×76

    76

    2

    120×120

    110×110

    111×111

    108×108

    55.5Series /2 M /2K4）

    93.5（Other）

    3

    80×80

    75×75

    76×76

    75

    4

    120×60

    115×55

    116×56

    93

    5

    96×48

    90×43

    91×44

    117

    9

    96×96

    90×90

    91×91

    88×88

    75

    A

    72×72

    66×66

    67×67

    75

    D

    48×48

    44.5×44.5

    45×45

    89
