AH3-1/2/3

Products Info

>>   Category:IC Time Relay

>>   Download Link

>>   E-mail:aultop@aultop.com.cn

>>   Tel:+86-577-62777339

Share to:

 Get a Quote

GET GUOTES

  X
Submit
  • Feature
  • Technical Parameters
  • Dimensions

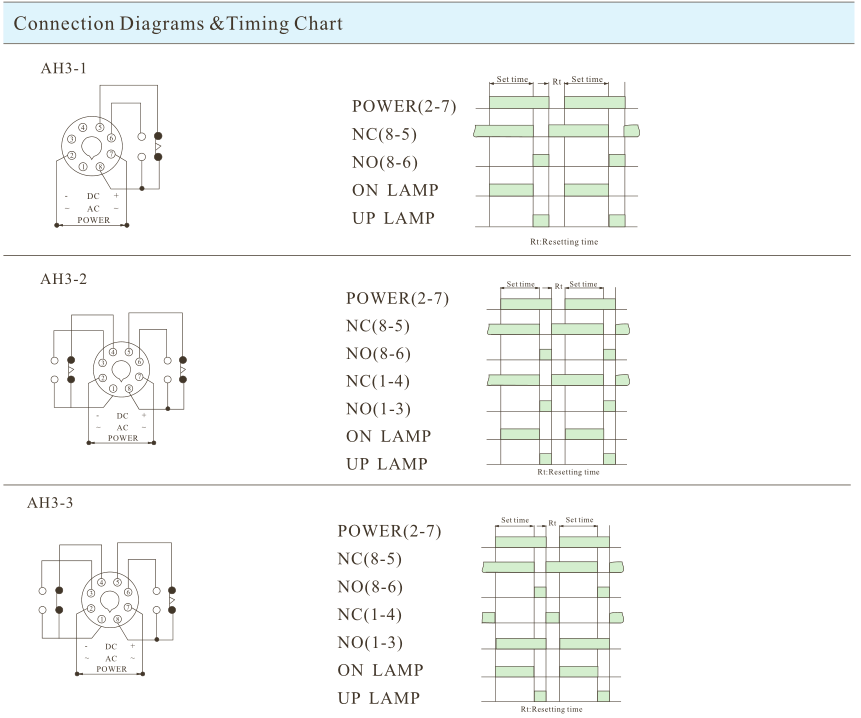

  • Wiring Diagram
  • Classification

    Timer

    Model

    AH3-1

    AH3-2

    AH3-3

    Appearance

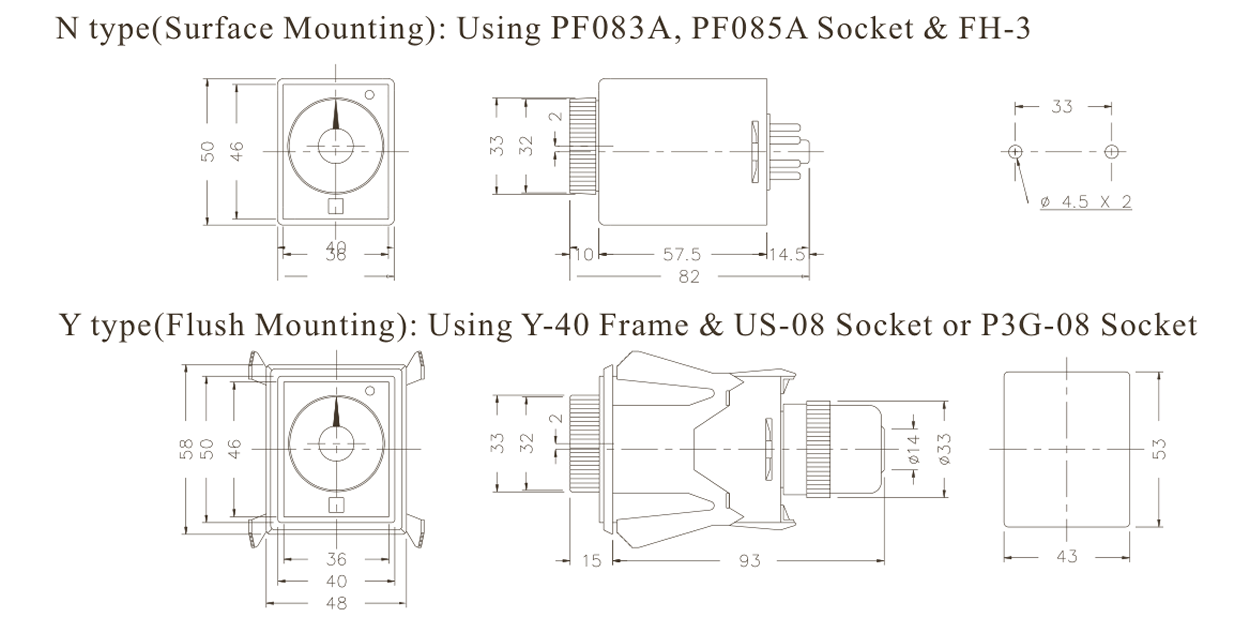

    Dimensions

    50H×40W×57.5D

    Mounting

    & Socket

    Surface(-N)

    PF083A(E)  PF085A

    Flush(-Y)

    US-08 P3G-08

    Full Timing Range

    SEC:1,3,6,10,12,30,60

    MIN:3,6,10,12,30,60

    HR:3,6,10,12,30

    Rated Voltage

    DC(V):12,24 AC(V):12,24,110,220,240,380, 50/60Hz

    Indicator Operating

    ON-UP Operating

    Output Contact

    Model

    AH3-1

    AH3-2

    AH3-3

    Time Limit 1c

    5A

    5A

    Time Limit 2c

    5A

    Instantaneous  1c

    5A

    Life

    Mechanical

    5×106 times

    Electrical

    105 times

    Accuracy

    Repeat  Error

    ±1% max

    Setting Error

    ±10% max

    Voltage Error

    ±1% max

    Temp. Error

    ±2% max

    Reset Time

    0.1 sec  max

    Consumed Power

    2VA

    Ambient Temperature

    -10~+55

    Ambient Humidity

    48~85%RH

    Weight

    160g
