ST3P

Products Info

>>   Category:IC Time Relay

>>   Download Link

>>   E-mail:aultop@aultop.com.cn

>>   Tel:+86-577-62777339

Share to:

 Get a Quote

GET GUOTES

  X
Submit
  • Feature
  • Technical Parameters
  • Dimensions
  • Wiring Diagram
  • Classification

    Timer

    Model

    ST3P

    Appearance

    Dimensions

    55H×40.5W×57.5D

    Mounting

    & Socket

    Surface(-N)

    PF-083A(E)

    Flush(-Y)

    US-08 P3G-08

    Full Timing Range

    A:0.05-0.5s/5s/30s/3min B:0.1-1s/10s/60s/6min C:0.5-5s/50s/5min/30min D:1-10s/100s/10min/60min E:5-1min/10min/60min/6h F:0.25-2min/20min/2h/12h G:0.5-4min/40min/4h/24h

    Rated Voltage

    24 to 240 VAC/DC AC(V) 110V, 220V DC(V) 12V, 24V

    Indicator Operating

    ON,UP Operating

    Output Contact

    Model

    ST3PA

    ST3PC

    Time Limit 1c

    5A

    Time Limit 2c

    5A

    Instantaneous  1c

    5A

    Life

    Mechanical

    5×107 times

    Electrical

    105 times

    Accuracy

    Repeat  Error

    ±1% max

    Setting Error

    ±10% max

    Voltage Error

    ±1% max

    Temp. Error

    ±2% max

    Reset Time

    0.5 sec  max

    Consumed Power

    2VA

    Ambient Temperature

    -10~+55

    Ambient Humidity

    35~85%RH

    Weight

    100g

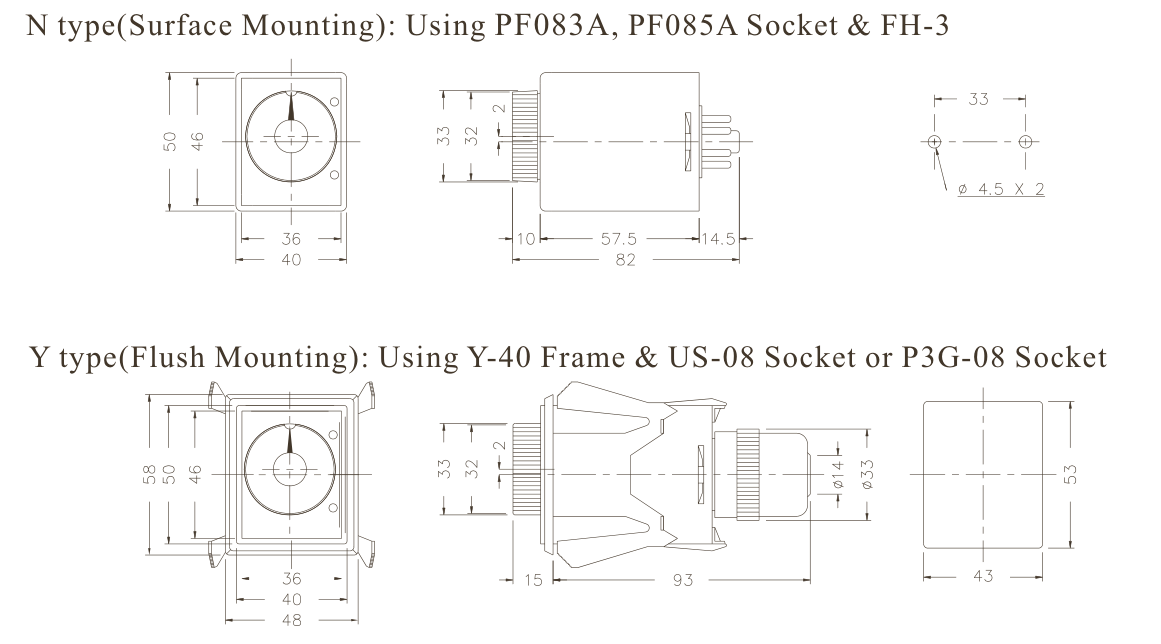

  • Dimensions: (mm)

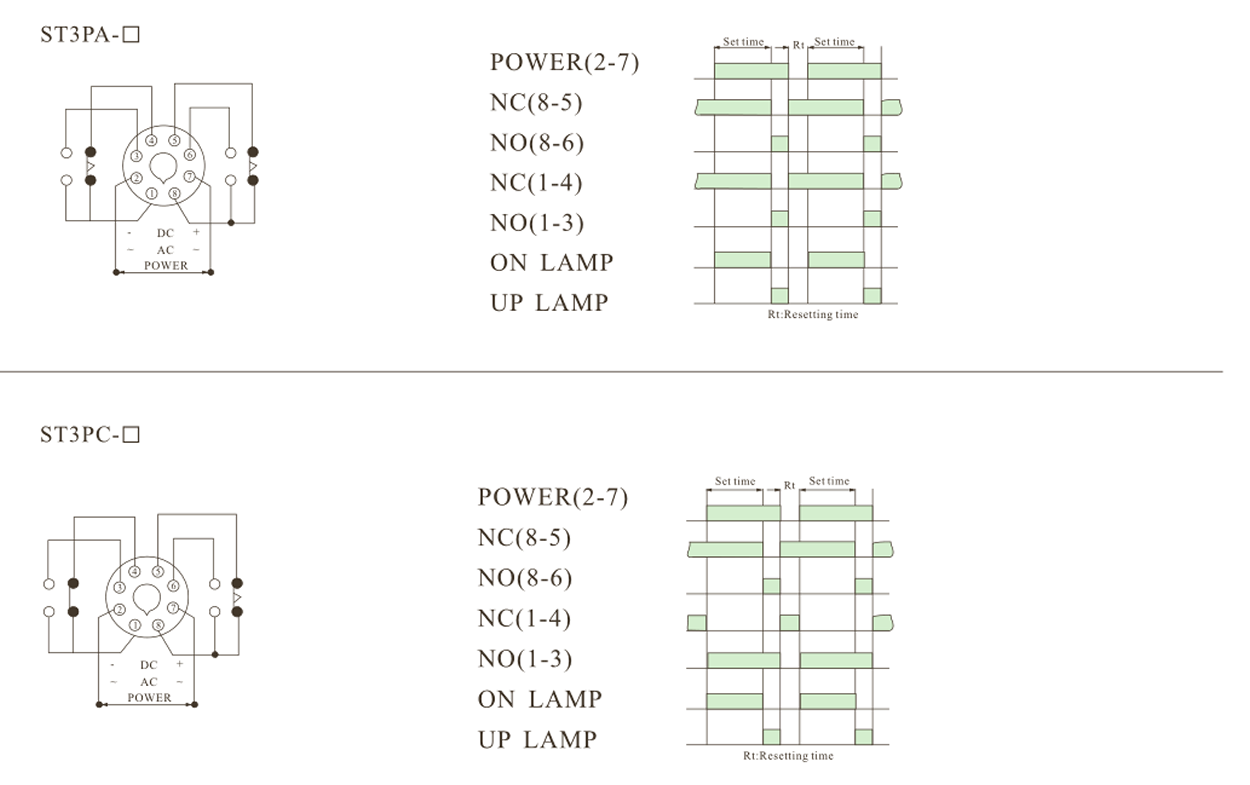

  • Connection Diagrams &Timing Chart
