Analogue time switch 1 Module Din Rail

Products Info

>>   Category:Mechanical Programmable Time Switch

>>   Download Link

>>   E-mail:aultop@aultop.com.cn

>>   Tel:+86-577-62777339

Share to:

 Get a Quote

GET GUOTES

  X
Submit
  • Feature
  • Technical Parameters
  • Dimensions
  • Wiring Diagram
  • Function


    Analogue time switch, 1 channel

    Daily/24 hours program
    96 switching segments
    DIN rail installation
    Synchronised with mains
    Shortest switching time: 15 Minutes

    SUL180 With power reserve 72 hours

    SUL160 Without battery reserve

  • Technical Data

    Model

    SUL180

    SUL160

    Voltage rating

    110-240VAC 50/60Hz

    Voltage limit

    110-250VAC/DC

    Hysteresis

    ≤2sec/day(25 )

    On/off operation

    96 switching segments

    Power consumption

    1VA(max)

    Width

    1 Modules(18mm)

    Shortest switching time

    15 Minute

    Programmable every

    15 Minute

    Program

    Daily (24 hours) program

    Installation Type

    Din Rail

    Power reserve

    72 Hours

    Without battery reserve

    Switching contact

    1 NC(SPST)

    Switching Contact at 250VAC, cosφ=1

    16A

    Switching capacity at 250VAC, cosφ=0.6

    10A

    Incandescent/HALogen lamp load

    2300W

    Energy saving lamps

    22x7W, 18X11W, 16X15WM 16X20W, 14X23W

    Service life

    Mechancally

    107

    electrically

    105

    Ambient humidity

    35~85%rh

    Ambient temperature

    -10~+40

    Weight

    approx180g

    Certificate

    CE

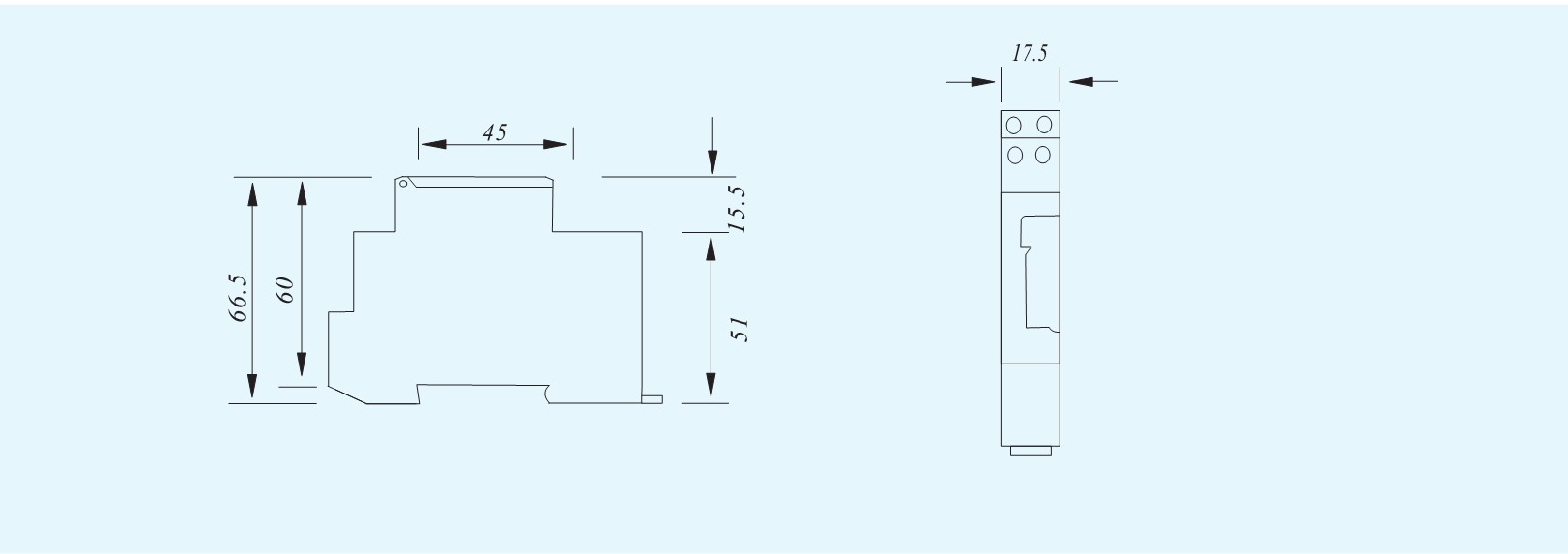

  • Dimensions(mm)

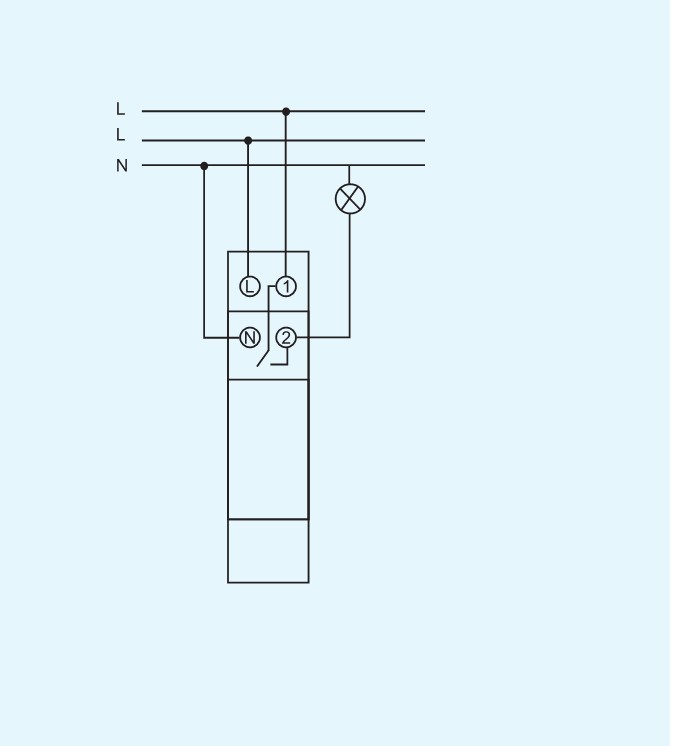

  • Connection example
