Mechanical Programmable Timer Switch 3 Modules Din Rail

Products Info

>>   Category:Mechanical Programmable Time Switch

>>   Download Link

>>   E-mail:aultop@aultop.com.cn

>>   Tel:+86-577-62777339

Share to:

 Get a Quote

GET GUOTES

  X
Submit
  • Feature
  • Technical Parameters
  • Dimensions
  • Wiring Diagram
  • Function

    Analogue time switch, 1 channel

    daily/24 hours program
    48 switching segments
    DIN rail installation
    Synchronised with mains
    Shortest switching time: 30 Minutes

    SUL181h With power reserve 150 hours

    SUL161h Without battery reserve

  • Technical data


    Model

    SUL181h

    SUL161h

    Voltage rating

    110-240VAC 50/60Hz

    Voltage limit

    110-250VAC/DC

    Hysteresis

    ≤2sec/day(25 )

    On/off operation

    48 switching segments

    Power consumption

    1VA(max)

    Width

    3 Modules(54mm)

    Shortest switching time

    30 Minute

    Programmable every

    30 Minute

    Program

    Daily (24 hours) program

    Installation Type

    Din Rail

    Power reserve

    150 hours

    Without battery reserve

    Switching contact

    1 Change over switch

    Switching Contact at 250VAC, cosφ=1

    16A

    Switching capacity at 250VAC, cosφ=0.6

    10A

    Incandescent/HALogen lamp load

    2300W

    Energy saving lamps

    22x7W, 18X11W, 16X15WM 16X20W, 14X23W

    Service life

    Mechancally

    107

    electrically

    105

    Ambient humidity

    35~85%rh

    Ambient temperature

    -10~+40

    Weight

    approx180g

    Certificate

    CE

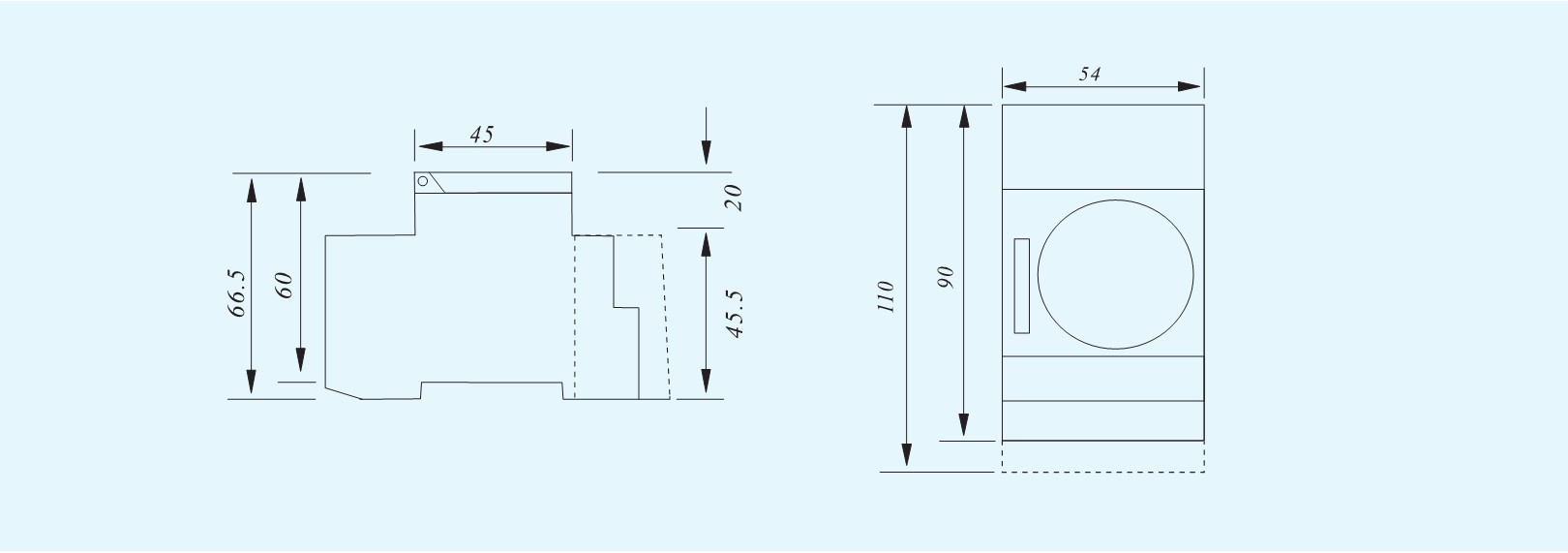

  • Dimensions(mm)

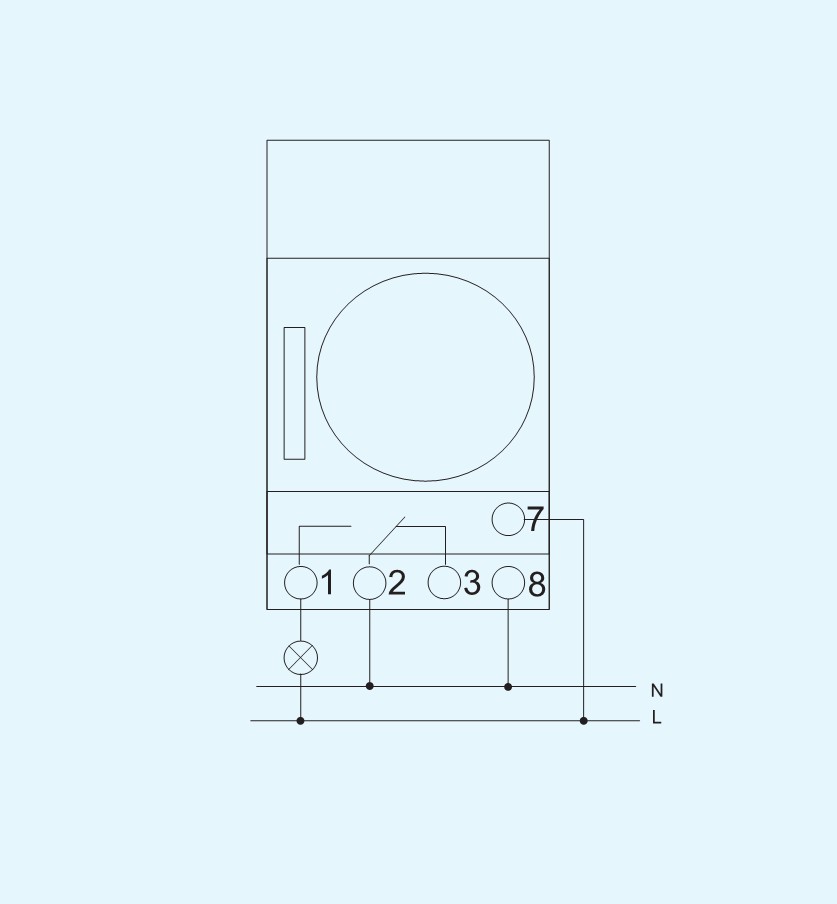

  • Connecrtion example
