ATMS1612 WiFi Smart Timer & Electricity Meter

Products Info

>>   Category:WiFi Smart Timer

>>   Download Link

>>   E-mail:aultop@aultop.com.cn

>>   Tel:+86-577-62777339

Share to:

 Get a Quote

GET GUOTES

  X
Submit
  • Feature
  • Technical Parameters

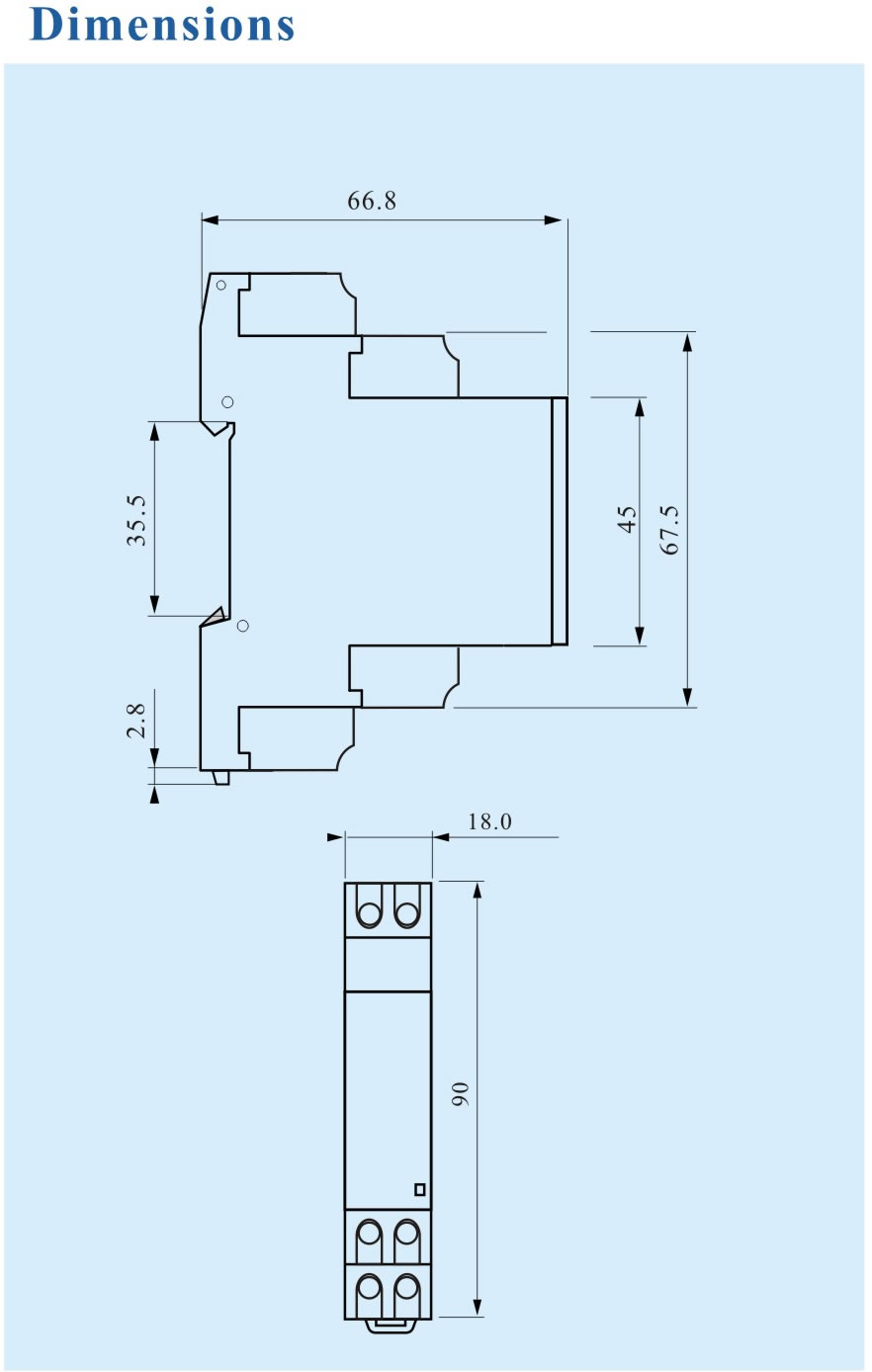

  • Dimensions

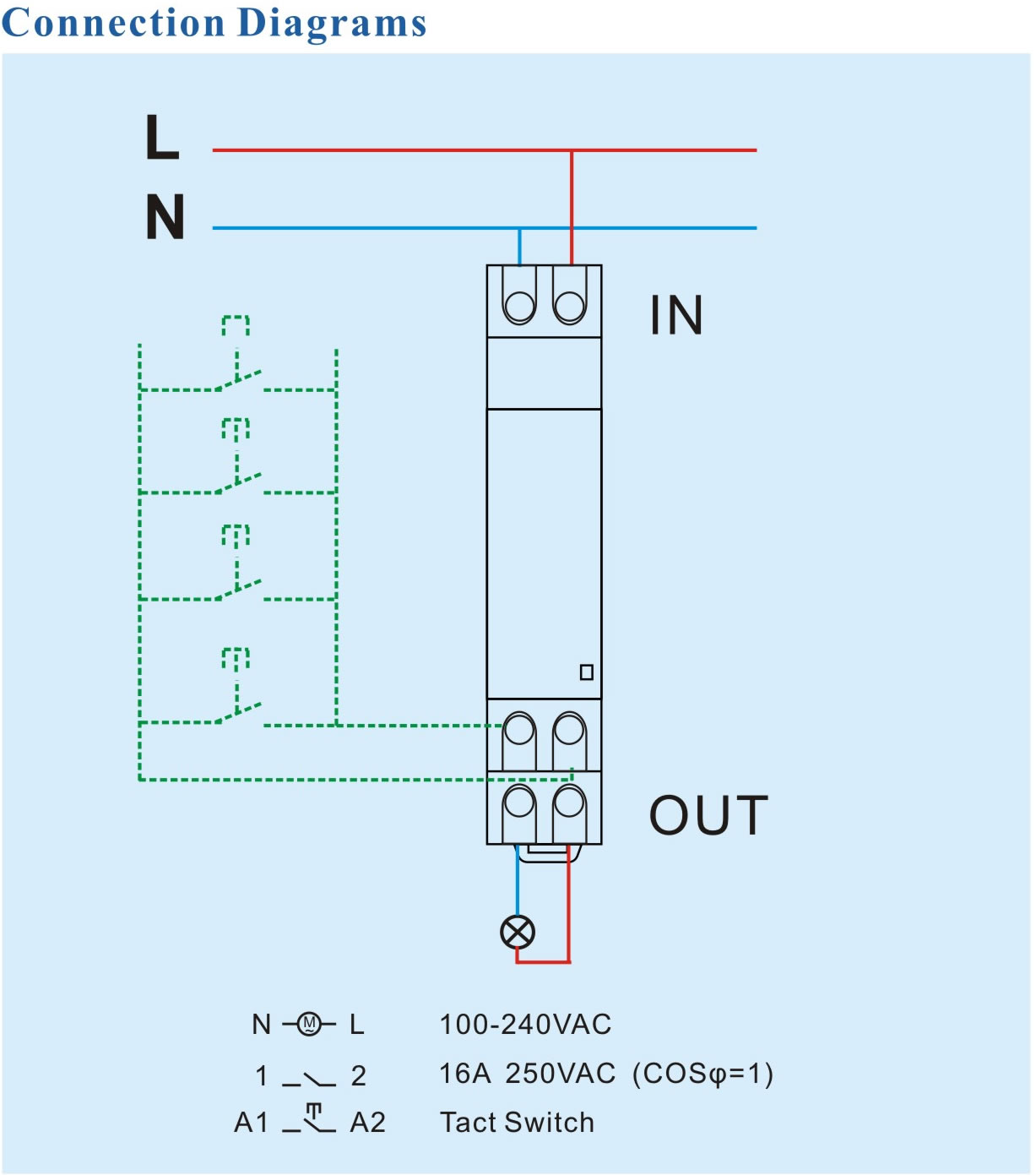

  • Wiring Diagram
  • Function
    ●Program timer, can set 100 On/Off programs one day or per week.
    ●Count down time, from 1 Min to 23 hours 59 Mins.
    ●If the product is disconnccted from the nctwork, the timer retains all programs set up by Mobile App and works according to the set programs.
    ●With memory function, W hen the product contact is in the close state,after the power failure, and then call, the product contacts still keep the closc state.
    ●Also can controlled by buttons from terminal A1 and A2.

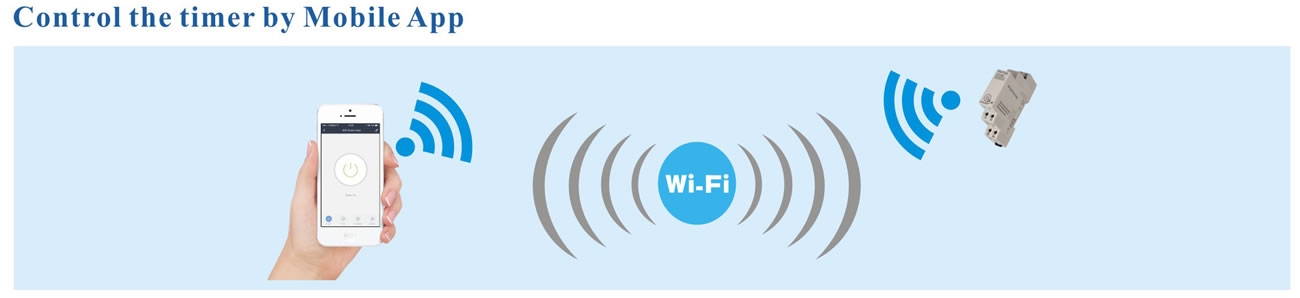

    ●Can be share with 100 peoples by Mobile App.
    ●In the App can display: Today Ele (K Wh), Current Ele (mA),Current Power (W), Current Voltage(V),Total Ele (KWh)

  • Technical data
    Rated Voltage: 100-240VAC 50-60Hz
    Rated Current: 16A 250VAC(COSφ=1)
    Contact configuration: 1NO(SPST-NO)
    WiFi Frequency: 2.4GHz
    Mounting: DIN Rail 35 mm(EN 60715)
    Ambient temperature range: -10C..+60C
