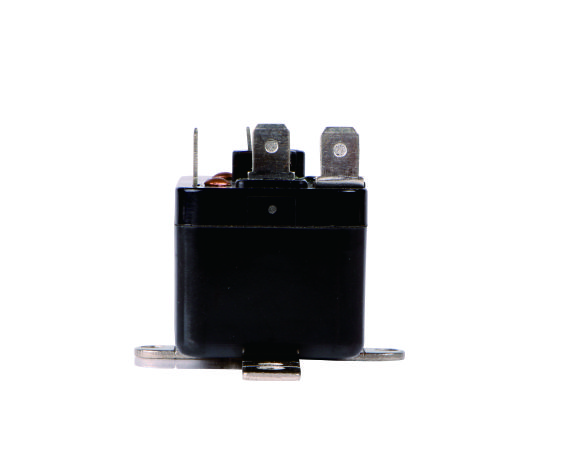

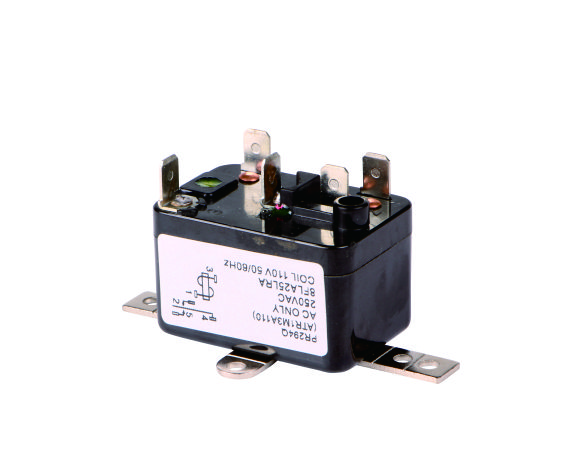

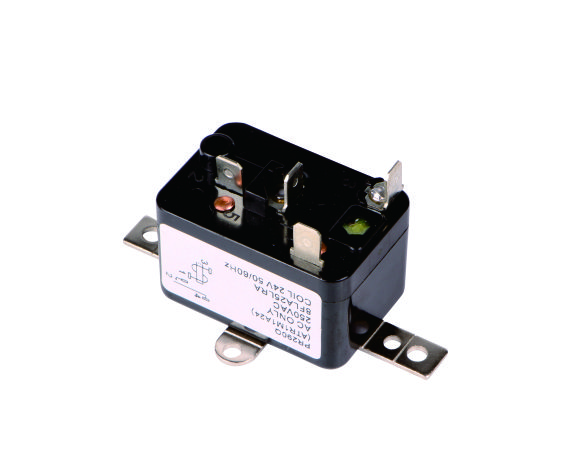

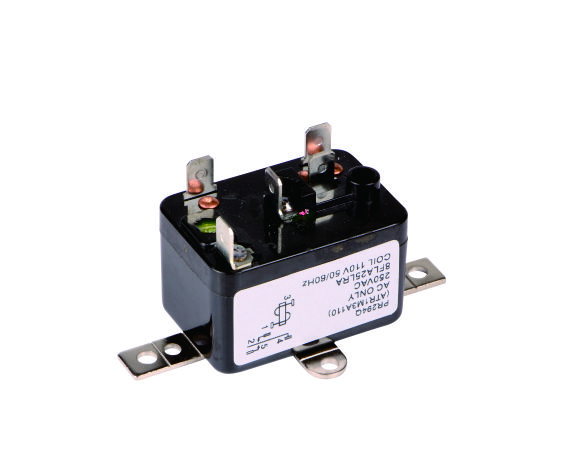

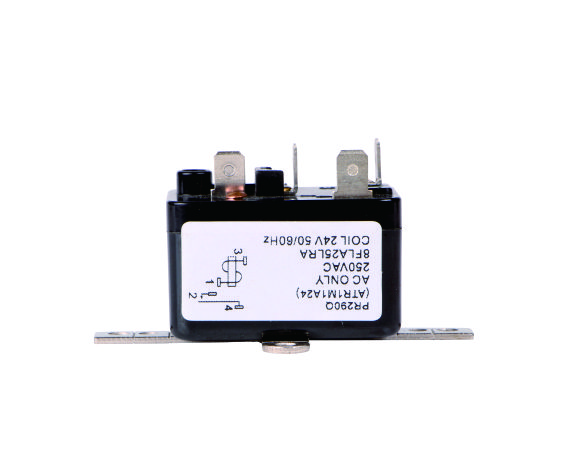

1)16A switching capability
2)2.5kV dielectric strength(between coil and contacts)
3)Panel mount types available
4)Environmental friendly product(RoHS COMPLIANT)

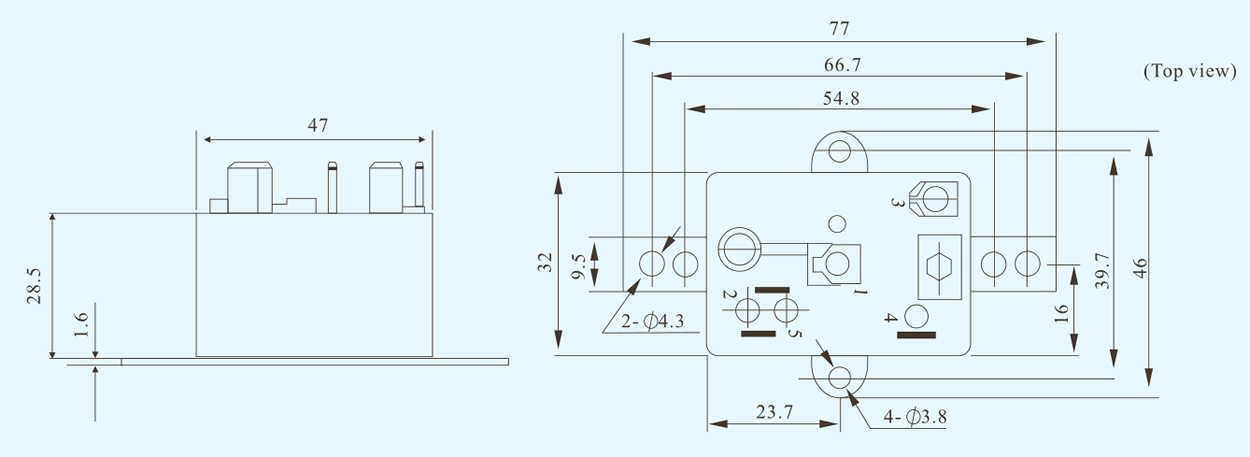

5)Outline Dimensions: 47.0×32.0×28.5mm
Ordering Information
|
aultop relay |
type |
mount |
contact arrangement |
coil voltage form |
coil voltage |
cunstomer special code |
|
ATR |
1 |
M |
1 |
D |
24 |
|
|
|
|
Metal Bracket |
1: Forma A 2: Forma B 3: Forma C |
D: DC A: AC |
AC: 6 TO 277VAC DC: 6 TO 120VDC |
|
|

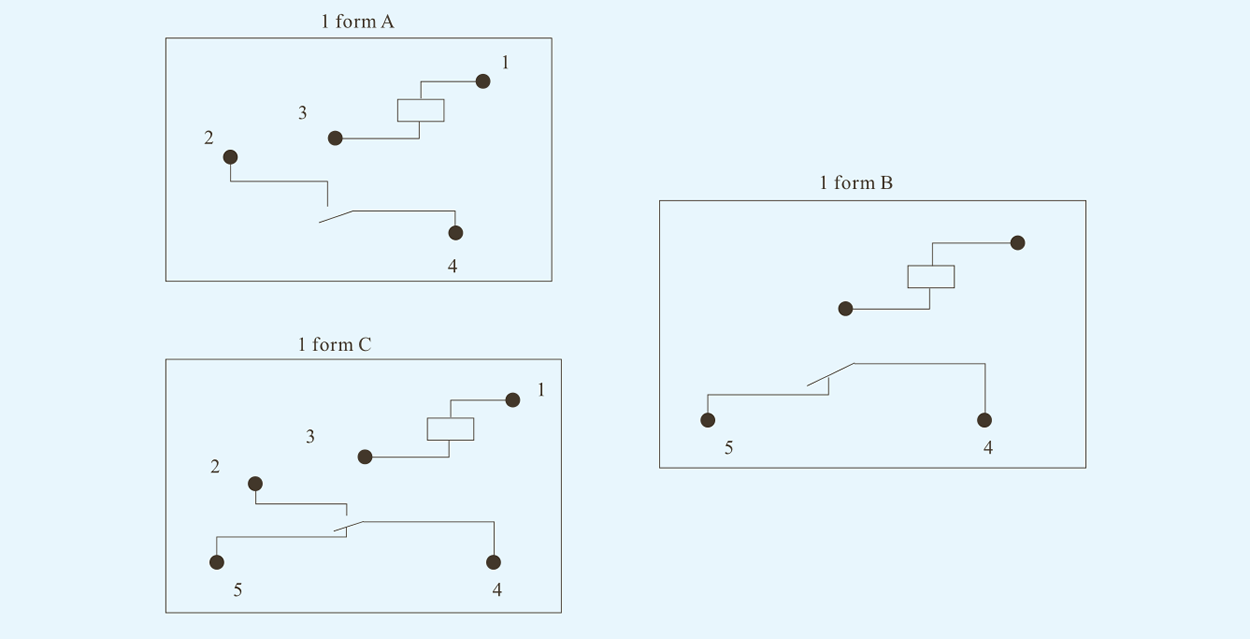

Contact arrangement: |
1A, 1B, 1C |
|
Contact resistance: |
50mΩ max.(at 1A 24VDC) |
|
Contact Material |
Silver alloy |
|
Contact rating: (Res. Load) |
Form A: 16A 250VAC, resistive load |
|
Form B: 8A 250VAC, general load |
|
|
Form C: 16A 250VAC, resistive load |
|
|
Max. Switching Voltage: |
250VAC |
|
Max. Switching Current: |
16A |
|
Max. Switching Power: |
4000VAC |
|
Mechanical endurance: |
1×106 OPS |
|
Electrical endurance: |
Form A: SPST-NO 1×105 OPS(16A 250VAC, Resistive load, at 65℃1s on 9s off) |
|
Form B: SPST-NC 3×104 OPS(8A 250VAC, General use, at 40℃1s on 9s off) |
|
|
Form C: SPDT-NO+NC 1×105 OPS(16A 250VAC, Resistive load, at 65℃1s on 9s off) |
|
Insulation resistance |
500MΩ max.(at500VDC) |
|
|
Dielectric strength |
Between coil & contacts |
2500VAC 1min |
|
Between open contact |
1000VAC 1min |
|
|
Operate time(at nomi. Volt.) |
DC type: 25ms Max. |
|
|
Release time(at nomil. Volt.) |
DC type: 25ms Max. |
|
|
Temperature rese(at nomil. Volt.) |
90K Max. |
|
|
Shock resistance(Functional) |
147m/s211ms |
|
|
Vibration resistance |
10Hz to 55Hz 2.54mm DA |
|
Ambient temperature |
-40℃ to 65℃ |
|
Humidity |
5% to 85% RH |
|

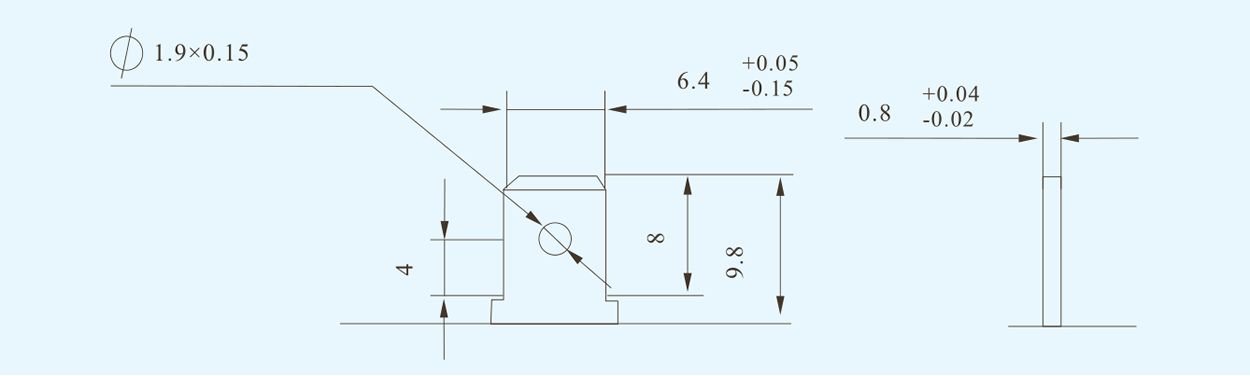

Termination |
QC |
|
Unit weight |
Approx. 71g |
|
Construction |
Dust protected |
Coil Data At 23℃
|
Nominal Voltage VDC |
Pick-up Voltage VDC max. |
Drop-out Voltage VDC min. |
Max. Voltage VDC |
Coil Resistance Ω |
|
6 |
4.50 |
0.6 |
6.6 |
17.5×(1±10%) |
|
9 |
6.75 |
0.9 |
9.9 |
40×(1±10%) |
|
12 |
9.00 |
1.2 |
13.2 |
70×(1±10%) |
|
24 |
18.00 |
2.4 |
26.4 |
280×(1±10%) |
|
48 |
36.00 |
4.8 |
52.8 |
1120×(1±10%) |
|
120 |
90.00 |
12 |
132 |
7000×(1±10%) |
|
Nominal Voltage VAC |
Pick-up Voltage VAC max. |
Drop-out Voltage VAC min. |
Max. Voltage VAC |
Coil Resistance Ω |
|
6 |
5.1 |
1.2 |
6.6 |
4.8×(1±10%) |
|
12 |
10.2 |
2.4 |
13.2 |
19×(1±10%) |
|
24 |
20.4 |
4.8 |
26.4 |
90×(1±10%) |
|
48 |
40.6 |
9.6 |
52.8 |
300×(1±10%) |
|
120 |
102.0 |
24 |
132 |
2000×(1±10%) |
|
240 |
204.0 |
48 |
264 |
7200×(1±10%) |
|
277 |
235.0 |
55.4 |
304.7 |
11000×(1±10%) |
