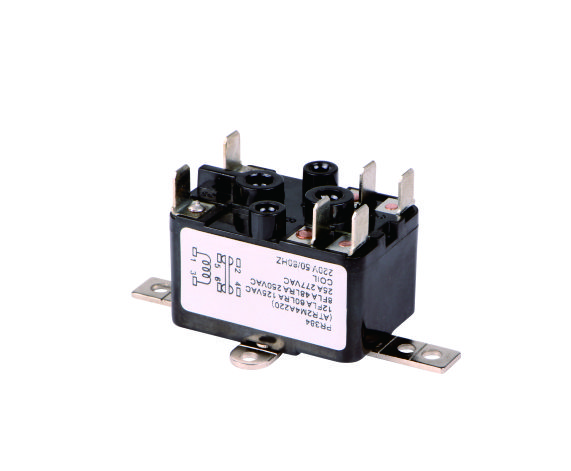

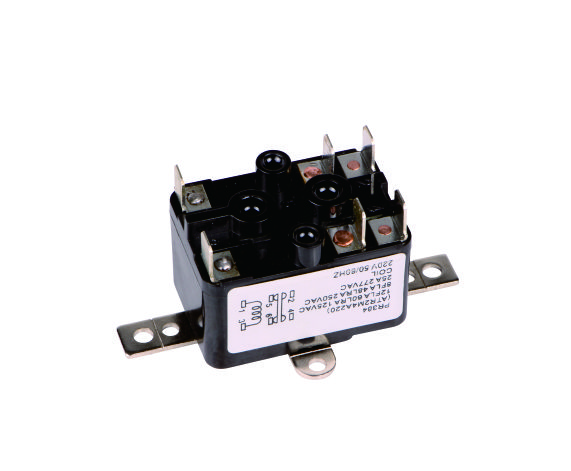

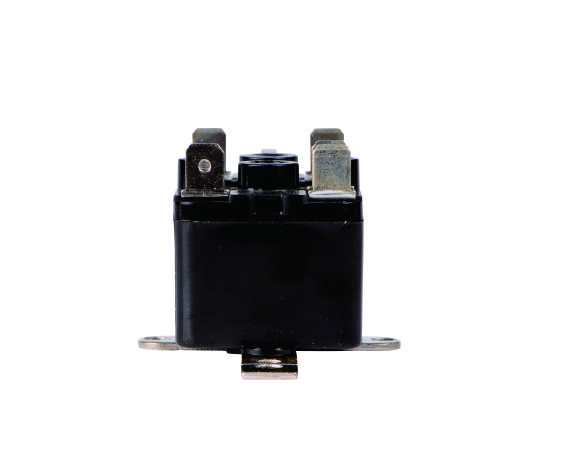

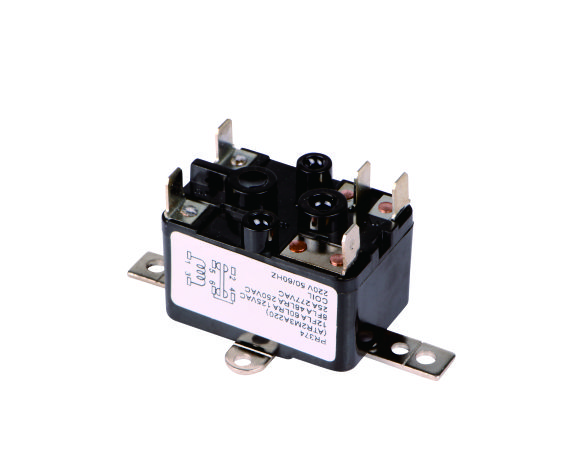

ATR2 High Power Fan Relay

Products Info

>>   Category:Air Conditional Relay

>>   Download Link

>>   E-mail:aultop@aultop.com.cn

>>   Tel:+86-577-62777339

Share to:

 Get a Quote

GET GUOTES

  X
Submit
  • Feature
  • Technical Parameters

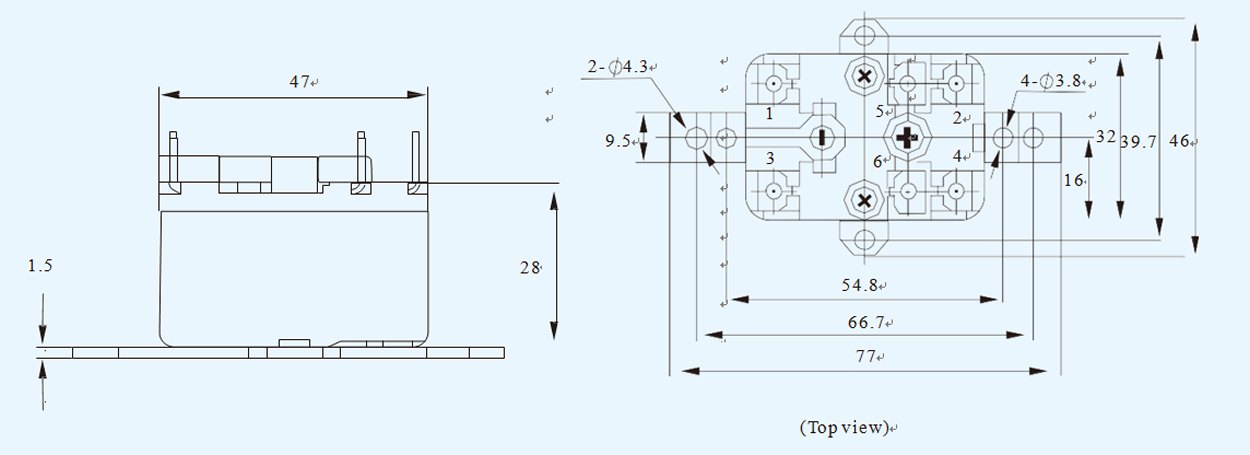

  • Dimensions

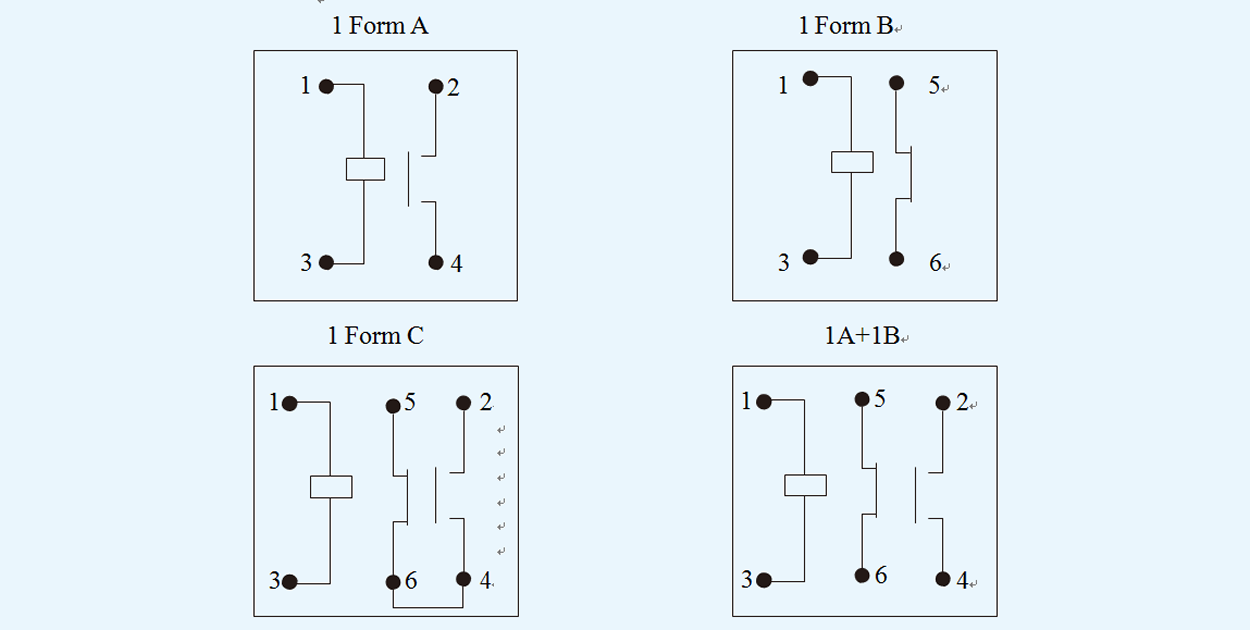

  • Wiring Diagram
  • 1) 25A switching capability
    2)2kV dielectric strength(between coil and contacts) 3)Panel mount types available
    4) Environmental friendly product(RoHS COMPLIANT)
    5) Outline Dimensions: 47.0 × 32.0 ×28.5mm

  • Ordering Information

    Aultop Relay

    Type

    Mount

    Contact Arrangement

    Coil Voltage Form

    Coil Voltage

    Cunstomer Special Code

    ATR

    2

    M

    1

    D

    24

    Metal Bracket

    1: Forma A

    2: Forma B

    3: Forma C 4: 1A + 1B

    D: DC A: AC

    AC: 6 TO 277VAC DC: 6 TO 120VDC


    Contact Data

    Contact Arrangement:

    1A, 1B, 1C, 1A+1B

    Contact Resistance:

    200mΩ max.(at 1A 24VDC)

    Contact Material

    AgCdO

    Contact Rating (res. Load)

    18A 227VAC

    Max. Switching Voltage:

    277VAC

    Max. Switching Current:

    18A

    Max. Switching Power:

    4986VA

    Mechanical Endurance:

    1×106 OPS

    Electrical Endurance:

    5×104 OPS(25A 277VAC, Resistive load, at 651s on 9s off)

    3×104 OPS(3A 277VAC, General use, at 651s on 9s off)


    Characteristics

    Insulation Resistance

    500MΩ max.(at500VDC)

    Dielectric Strength

    Between Coil & Contacts

    2500VAC 1min

    Between Open Contact

    1000VAC 1min

    Operate Time(at Nomi. Volt.)

    DC type: 25ms Max.

    Release Time(at Nomil. Volt.)

    DC type: 25ms Max.

    Temperature Rese(at Nomil. Volt.)

    90K Max.

    Shock Resistance(functional)

    98m/s211ms

    Vibration Resistance

    10Hz to 55Hz 0.5mm DA

    Ambient Temperature

    -40to 65

    Humidity

    5% to 85% RH

    Termination

    QC

    Unit Weight

    Approx. 74g

    Construction

    Dust protected






    Coil Data At 23℃

    Nominal Voltage VDC

    Pick-up Voltage VDC max.

    Drop-out Voltage VDC min.

    Max. Voltage VDC

    Coil Resistance

    Ω

    6

    4.50

    0.6

    6.6

    17.5×(1±10%)

    9

    6.75

    0.9

    9.9

    40×(1±10%)

    12

    9.00

    1.2

    13.2

    70×(1±10%)

    24

    18.00

    2.4

    26.4

    280×(1±10%)

    48

    36.00

    4.8

    52.8

    1120×(1±10%)

    120

    90.00

    12

    132

    7000×(1±10%)


    Nominal Voltage VAC

    Pick-up Voltage VAC max.

    Drop-out Voltage VAC min.

    Max. Voltage VAC

    Coil Resistance

    Ω

    6

    5.1

    1.2

    6.6

    4.8×(1±10%)

    12

    10.2

    2.4

    13.2

    19×(1±10%)

    24

    20.4

    4.8

    26.4

    90×(1±10%)

    48

    40.6

    9.6

    52.8

    300×(1±10%)

    120

    102.0

    24

    132

    2000×(1±10%)

    240

    204.0

    48

    264

    7200×(1±10%)

    277

    235.0

    55.4

    304.7

    11000×(1±10%)
