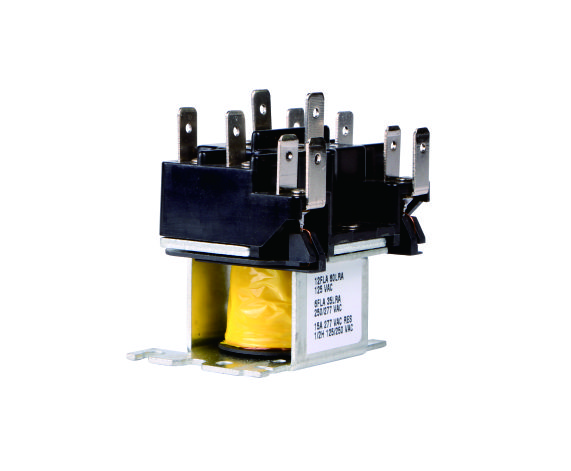

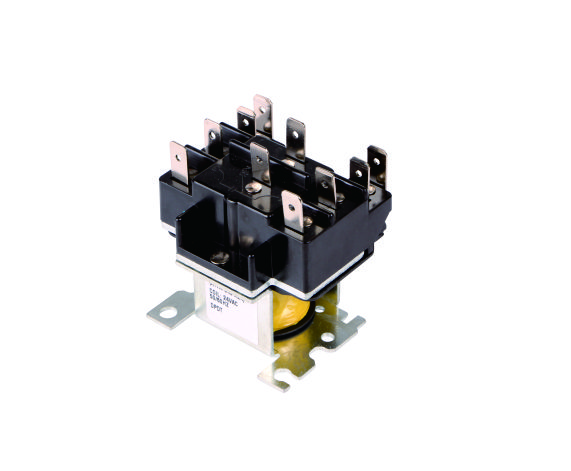

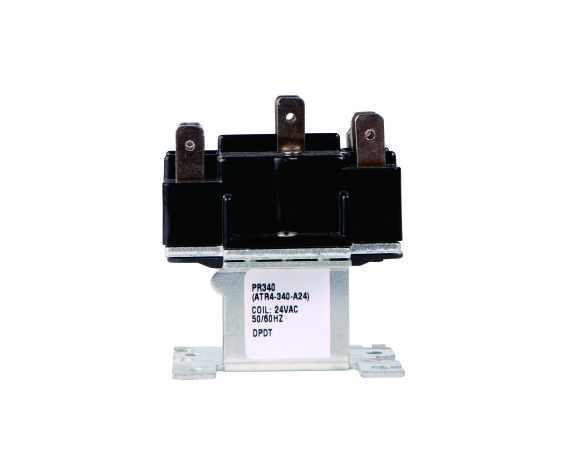

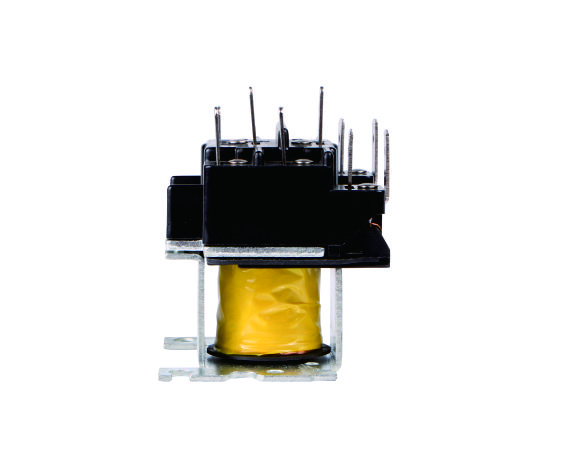

ATR4 Switching Relay

Products Info

>>   Category:Air Conditional Relay

>>   Download Link

>>   E-mail:aultop@aultop.com.cn

>>   Tel:+86-577-62777339

Share to:

 Get a Quote

GET GUOTES

  X
Submit
  • Feature
  • Technical Parameters

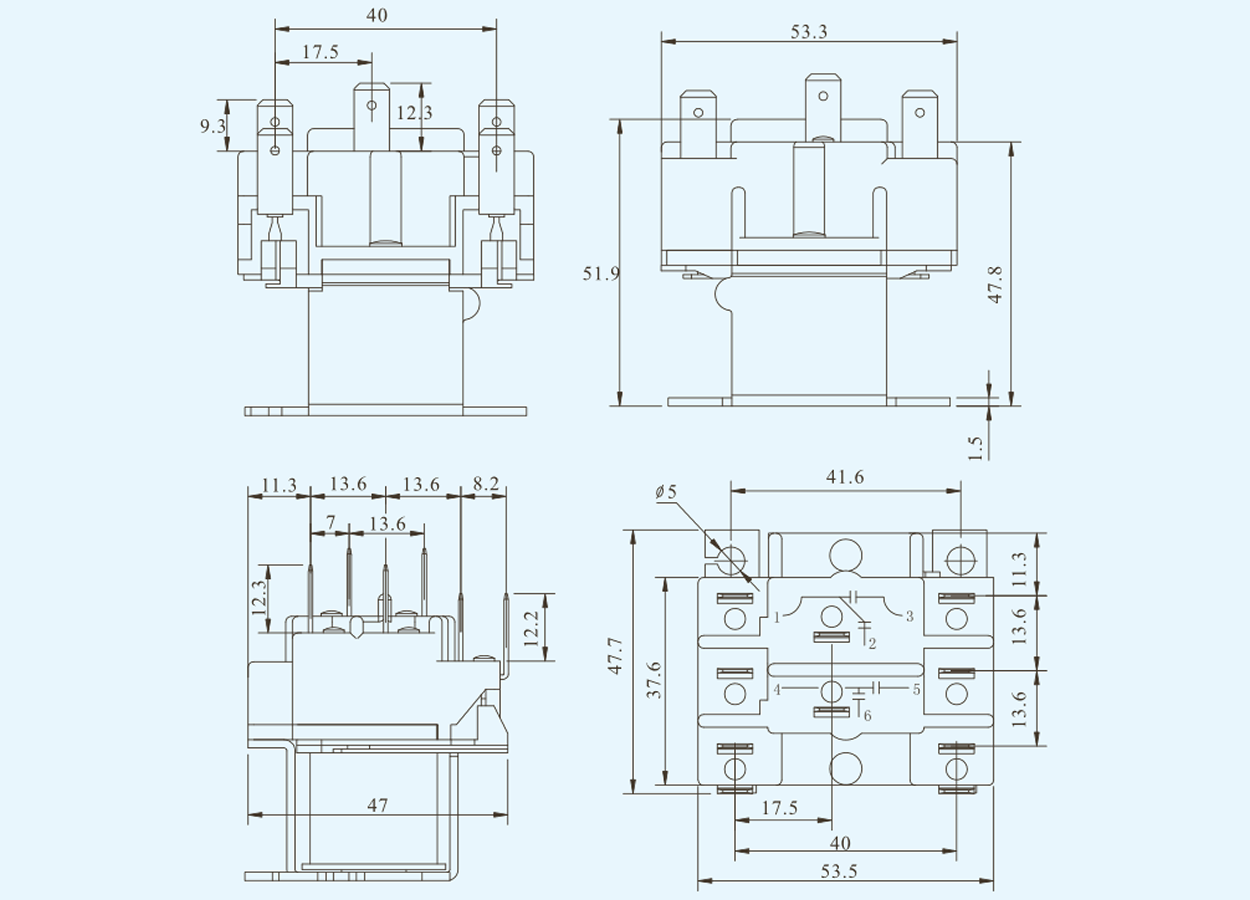

  • Dimensions

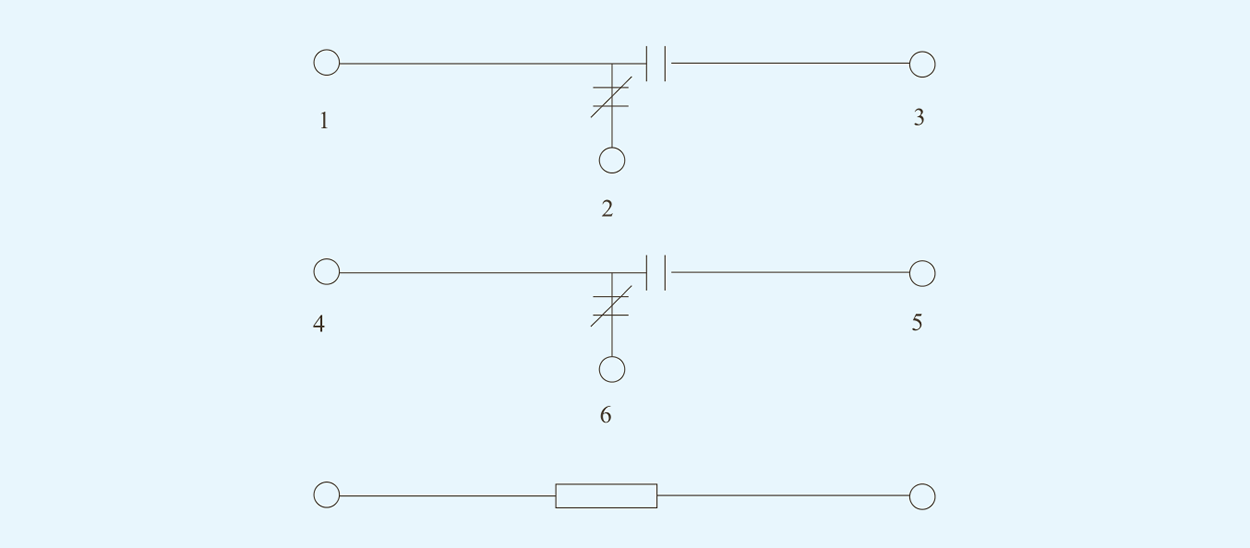

  • Wiring Diagram
  • 1) 2 POLE switching relay.
    2) CONTACT: DPDT
    3) 250# Quick connect termination
    4) Used on heat pumps, vending machines,fans, and heating and air conditioning

  • Ordering Information

    Aultop Relay

    Type

    Coil Voltage Form

    Coil Voltage

    Cunstomer Special Code

    ATR

    4

    A

    340

    A: AC         D: DC,

    340:  24V

    341: 110/120V

    342: 208/240V


    Characteristics

    Weight:

    Approx.160g

    Termination:

    QC

    Construction:

    Dust protected


    RT NO.

    Contact Voltage Vac

    Amp

    Coil Voltage Vac

    Contact Style

    Configurations

    FLA

    LRA

    Res.

    Poles

    Poles

    1-2-3

    4-5-6

    ATR4-340

    125

    12

    60

    15

    24

    DPDT

    Power

    Power

    250-277

    6

    35

    15

    480

    3

    18

    12.5

    600

    3

    14

    -

    ATR4-341

    125

    12

    60

    15

    120

    DPDT

    Power

    Power

    250-277

    6

    35

    15

    480

    3

    18

    12.5

    600

    3

    14

    -

    ATR4-342

    125

    12

    60

    15

    208-240

    DPDT

    Power

    Power

    250-277

    6

    35

    15

    480

    3

    18

    12.5

    600

    3

    14

    -

    ATR4-343

    125

    12

    60

    15

    24

    DPDT

    Power

    Pilot

    250-277

    6

    35

    15

    480

    3

    18

    12.5

    600

    3

    14

    -

    ATR4-344

    125

    12

    60

    15

    120

    DPDT

    Power

    Pilot

    250-277

    6

    35

    15

    480

    3

    18

    12.5

    600

    3

    14

    -

    ATR4-345

    125

    12

    60

    15

    208-240

    DPDT

    Power

    Pilot

    250-277

    6

    35

    15

    480

    3

    18

    12.5

    600

    3

    14

    -
