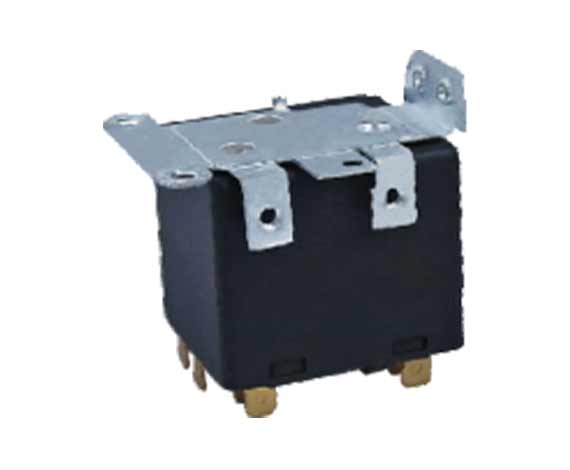

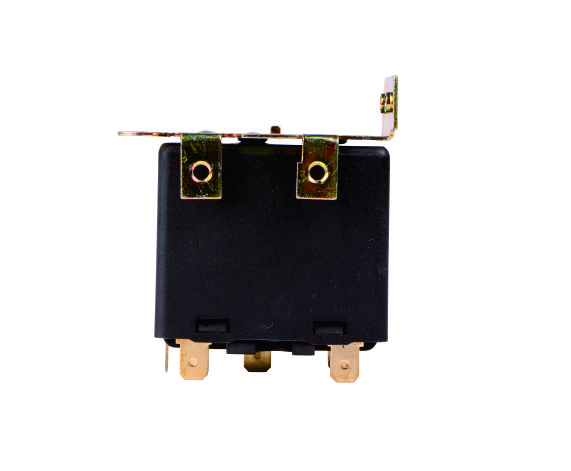

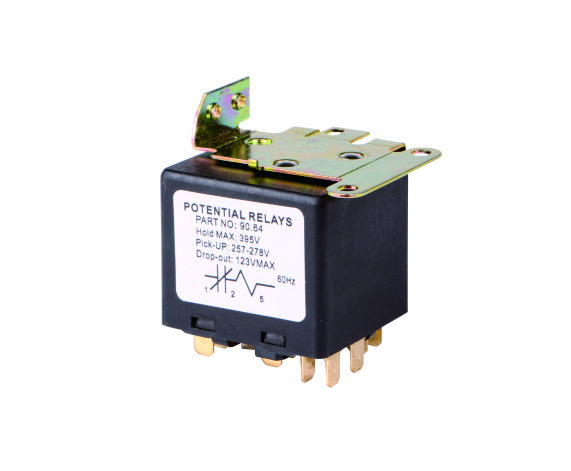

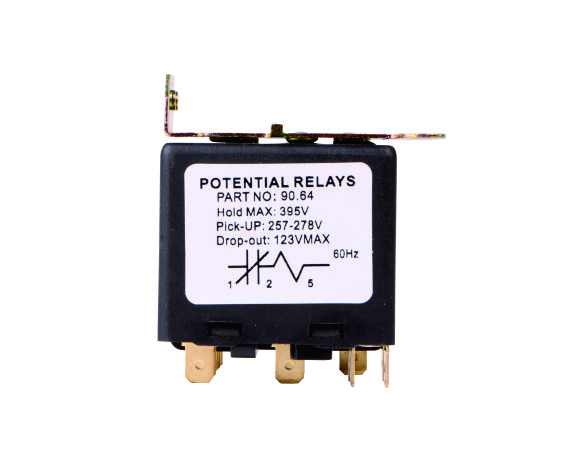

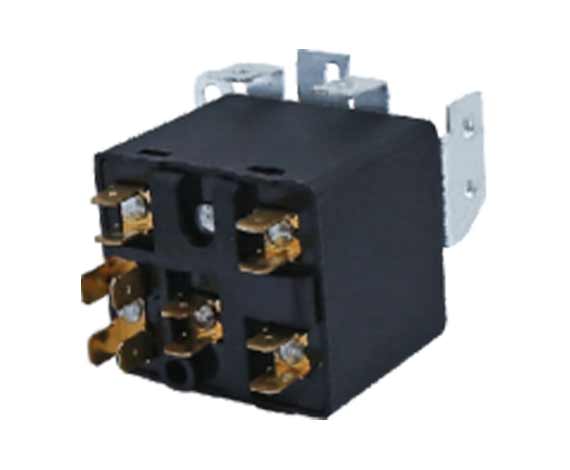

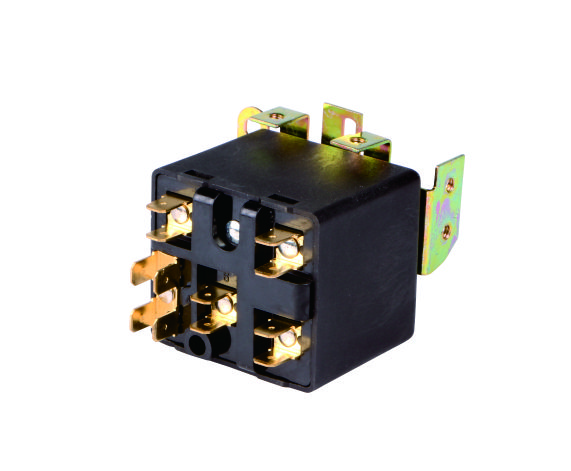

ATR5 Potential Relay

Products Info

>>   Category:Air Conditional Relay

>>   Download Link

>>   E-mail:aultop@aultop.com.cn

>>   Tel:+86-577-62777339

Share to:

 Get a Quote

GET GUOTES

  X
Submit
  • Feature
  • Technical Parameters

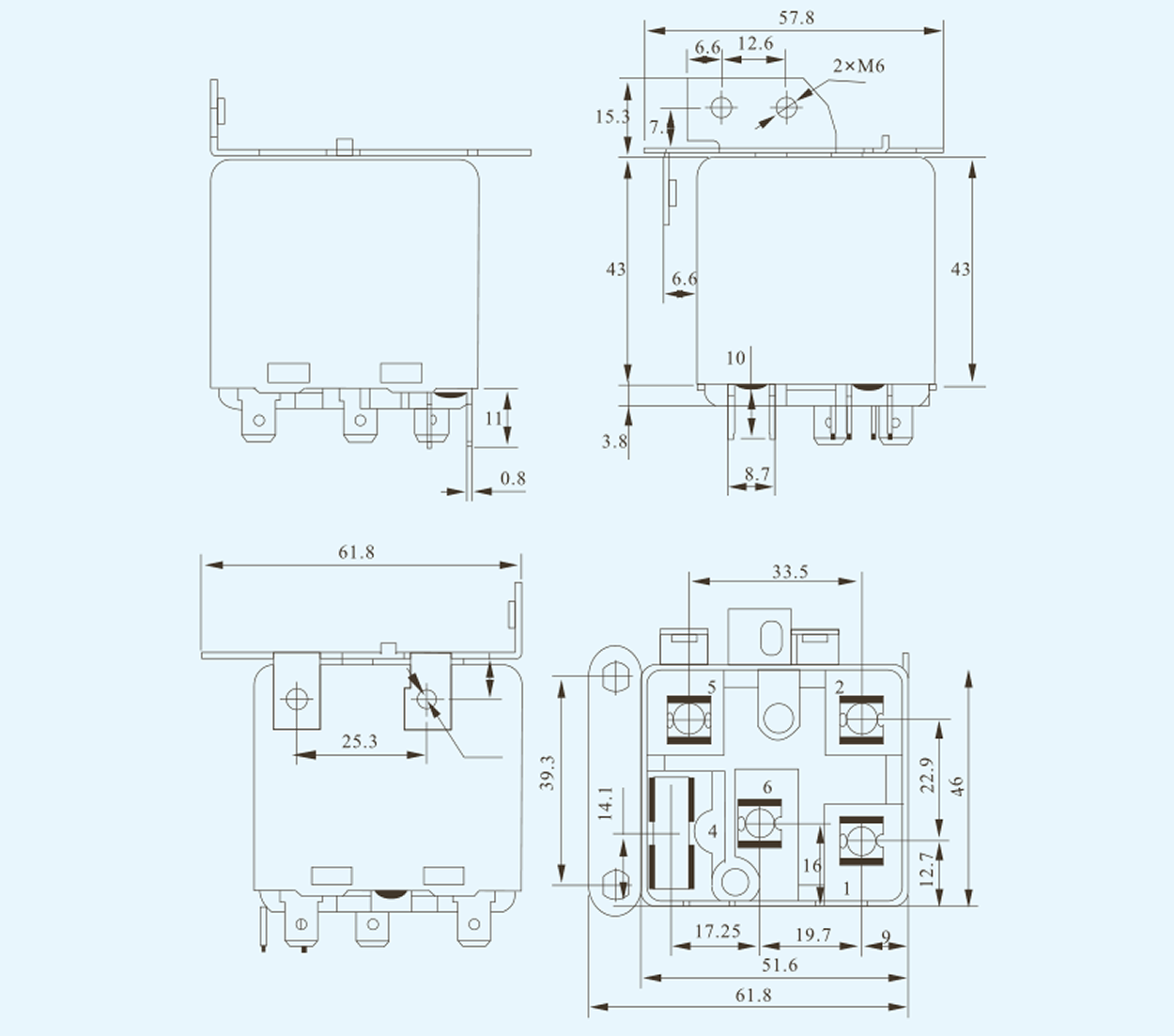

  • Dimensions

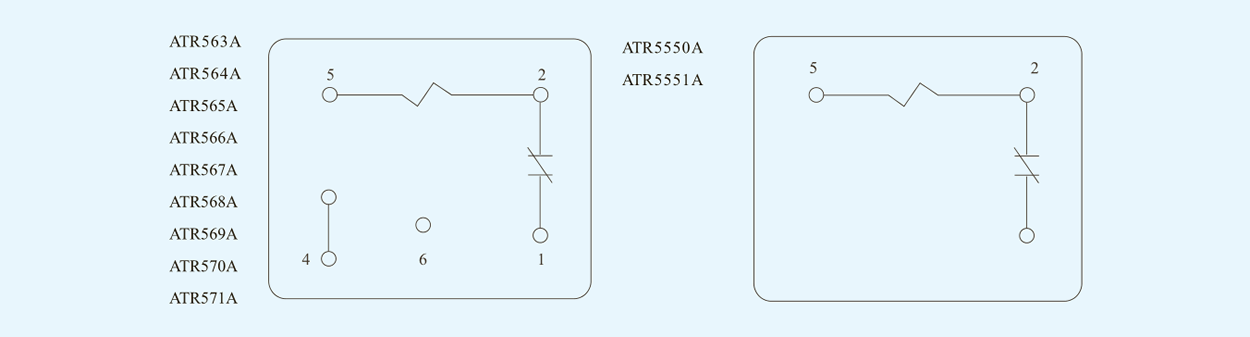

  • Wiring Diagram

  • 1) 35A switching capability
    2) 1 NC configuration available
    3) Quick connect termination
    4) Various of mounting posibtions
    5) Used on heat pumps, vending machines,fans, and heating and air conditioning

  • Ordering Information:

    Aultop Relay

    Type

    Coil Voltage Form

    Coil Voltage

    Cunstomer Special Code

    ATR

    5

    63: 170V

    64: 395V

    65: 332V

    66: 395V

    63

    67: 420V  69: 336V

    68: 500V  70: 253V

    71: 420V

    550: 130V

    551: 332V

    A: AC

    A

    D: DC,



    RT NO.

    Coil Voltage Vac

    Pick Up Min.

    Pick Up Max.

    Drop-out Max

    ATR563A

    170

    136

    156

    58

    ATR564A

    395

    257

    278

    123

    ATR565A

    332

    165

    185

    93

    ATR566A

    395

    210

    230

    123

    ATR567A

    420

    292

    318

    130

    ATR568A

    500

    322

    348

    138

    ATR569A

    336

    177

    198

    108

    ATR570A

    253

    152

    176

    80

    ATR571A

    420

    209

    235

    124

    ATR5550A

    130

    111

    134

    42

    ATR5551A

    332

    243

    271

    91


    Characteristics

    Weight:

    Approx.95g

    Termination:

    QC

    Construction:

    Dust protected
